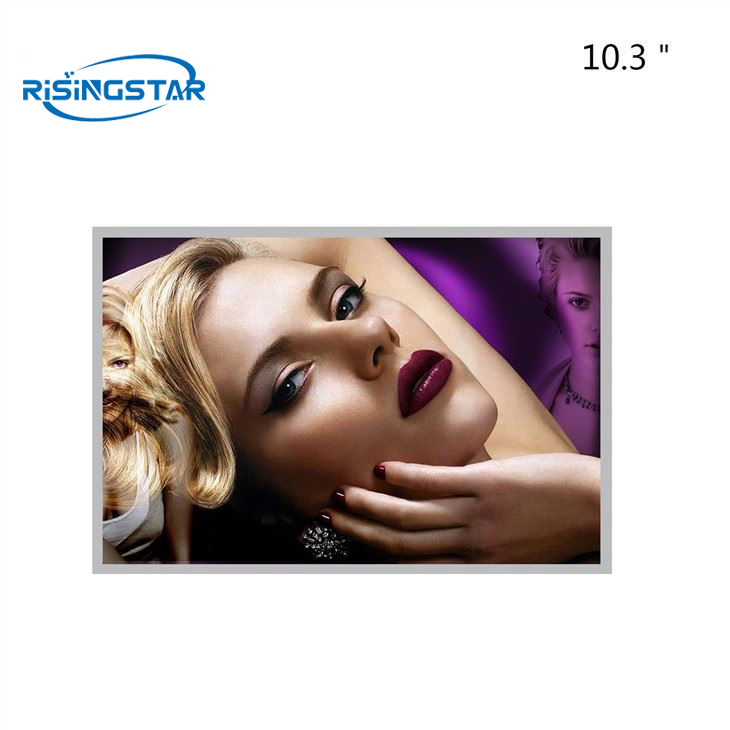

10.3" Innolux DJ103IA-03B LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.DJ103IA-03B

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

10.3" Innolux DJ103IA-03B brightness 800nits sunlight readable TFT Lcd Module.


Feature

1.Industrial design, 80,000 hours of uninterrupted work, stable performance;

2.High resolution, high contrast, wide viewing angle;

3.Using direct type LED backlight system; 4.3D digital image processing kernel for precise monitoring of

 more details;

4.Image signal gain function, more stable and correct image control;

5.Realize image restoration and improve system reliability;

6.A variety of signal interfaces, supporting a variety of signal input / output.111


Same size model: DJ103KC-01A


brand Innolux Model name DJ103IA-03B
size 10.3 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1920(RGB)×720 200PPI Pixel configuration RGB vertical bar
Display Area 243.648 × 91.368 (H×V) mm Surface treatment Fog surface
Brightness(cd/m²) 800 cd/m² (Typ.)or customized Contrast Ratio 1000:1 (Typ.) [transmission]
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Outline dimension 259.84×109.3×16mm(H×V×D)
Signal interface LVDS (2 ch, 8-bit),50 pins,terminal

work environment Storage temperature: -40 ~ 90 °C  Working temperature: -30 ~ 85 °C
