12.1" BOE EV121X0M-N10 LCD Module

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

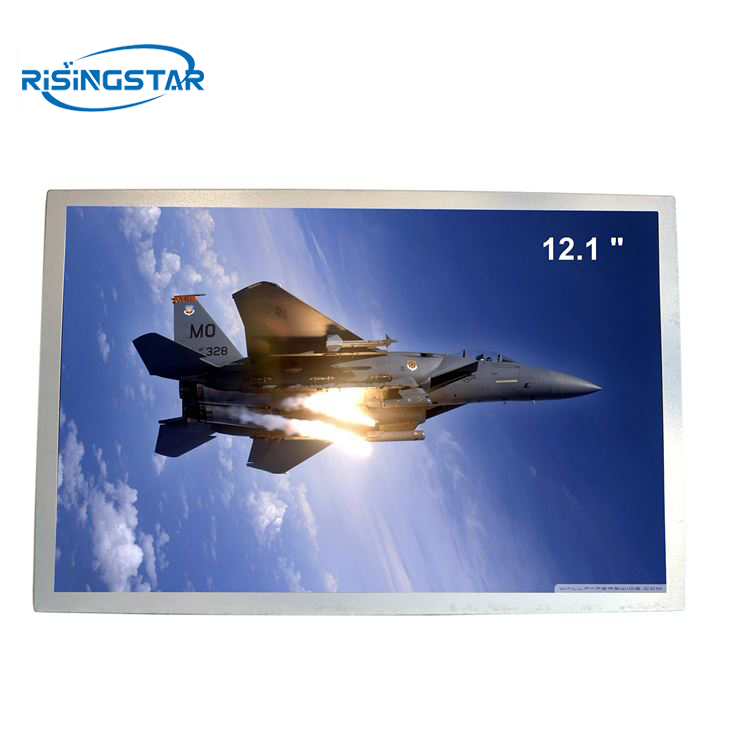

12.1" BOE EV121X0M-N10 brightness 500nits sunlight readable TFT Lcd Module.

brand BOE Model name EV121X0M-N10
size 12.1 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768 XGA 105PPI Pixel configuration RGB vertical bar
Display Area 245.76×184.32mm(H×V) Surface treatment /
Visual size 249 × 187.5 mm (H×V) Contrast Ratio 1200:1 (Typ.) (TM)
Brightness(cd/m²) 500 cd/m² (Typ.)or customized Outline dimension 249(H)×187.5(V) mm
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)

Signal interface 20 pins   LVDS (1 ch, 8-bit) ,terminal

work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C
