Model No.: EV121WXM-N12

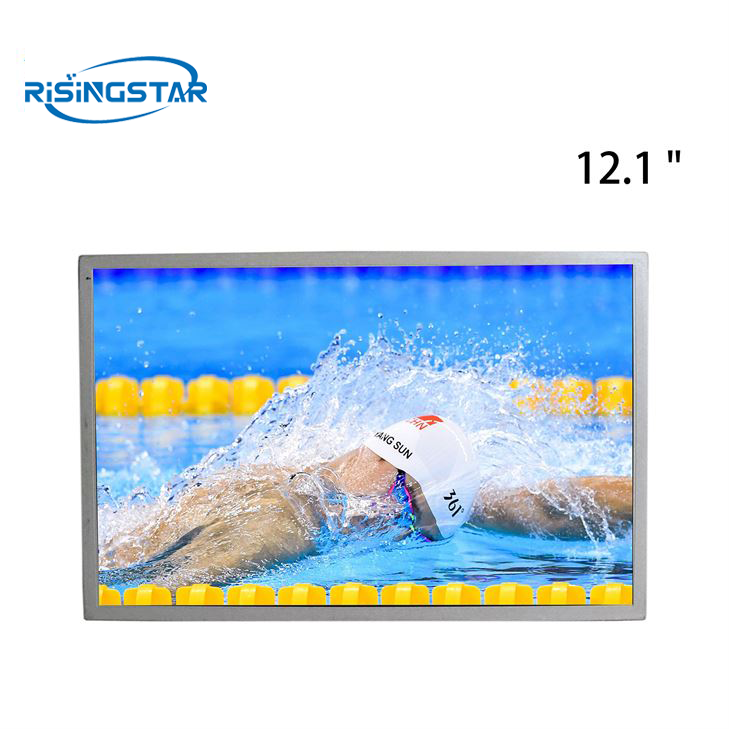

12.1" BOE EV121WXM-N12 brightness 500nits sunlight readable TFT Lcd Module.
Ev121wxm-n12 is a 12.1 inch LIQUID crystal module product launched by BOE Technology Group Co.,Ltd. (BOE) using A-SI TFT-LCD Technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. For backlighting, this product uses a 12S4P WLED side entry light source (bottom) with a life of 50K hours, including LED driver. Its typical vertical refresh rate Fv is 60Hz.
| brand | BOE | Model name | EV121WXM-N12 |
| size | 12.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 124PPI | Pixel configuration | RGB vertical bar |
| Display Area | 261.12 × 163.2 mm (H×V) | Surface treatment | Fog surface,(Haze 25%) |
| Visual size | 264.12 × 166.2 mm (H×V) | Contrast Ratio | 1200:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500 cd/m² (Typ.)or customized | Outline dimension | 277.7×180.6×9.2mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
