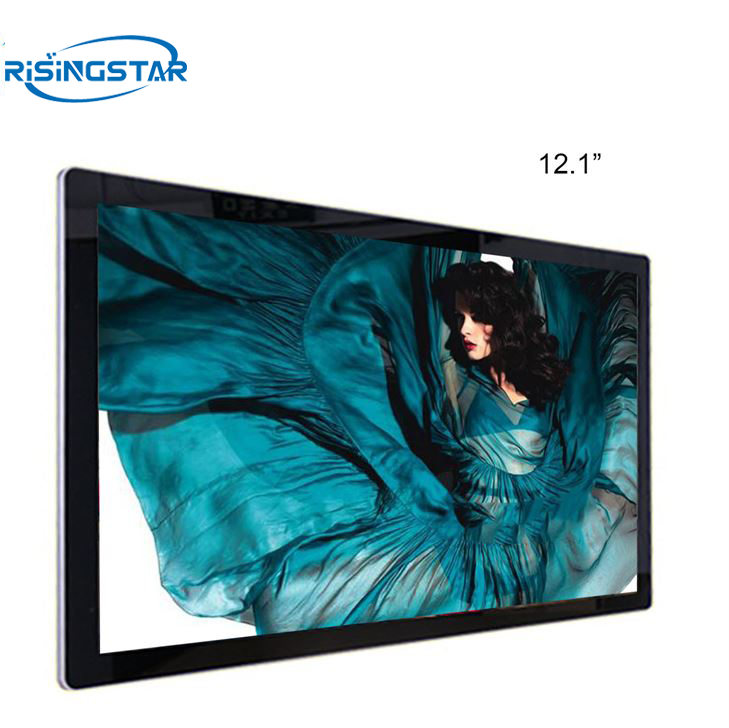

12.1" BOE AV121X0M-N10 LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.AV121X0M-N10

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

12.1 inch Innolux AV121X0M-N10 high brightness 600nits TFT LCD Panel sunlight visible.


A 12.1 "Lcd Module with A-SI TFT-LCD technology, equipped with WLED backlight, no backlight drive, no touch.  Its typical features are: high brightness, white LED backlight, RGB 2 domain stripe.  It operates at -20 to 85°C and is stored at -30 to 85°C.  This model is suitable for industrial applications.  Backlight This product uses 8S6P WLED side entry light source, the service life of the light source is 30K hours, without backlight drive.

The same size model: RV121X0M-N01

brand BOE Model name RV121X0M-N01
size 12.1 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768  XGA 105PPI Pixel configuration RGB vertical bar
Display Area 245.76×184.32mm(H×V) Surface treatment Clear
Brightness(cd/m²) 500cd/m²(Typ.)or customized Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Outline dimension 260.5×204×9.5mm(H×V×D)
Signal interface LVDS (1 ch, 6-bit),20 pins ,erminal

work environment Storage temperature: -40 to 80 °C  Operation Temperature: -30 to 70 °C


brand BOE Model name AV121X0M-N10
size 12.1 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768  XGA 105PPI Pixel configuration RGB vertical bar
Display Area 245.76×184.32mm(H×V) Surface treatment
Open zone 257.68×187.32mm(H×V) Contrast Ratio 1000:1 (Typ.) (TM)
Brightness(cd/m²) 600 cd/m² (Typ.)or customized Outline dimension 265.5×206.3×13.5mm(H×V×D)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal interface 30 pins LVDS (1 ch, 8-bit),erminal

work environment Storage temperature: -20 to 85 °C  Operation Temperature: -30 to 85 °C
