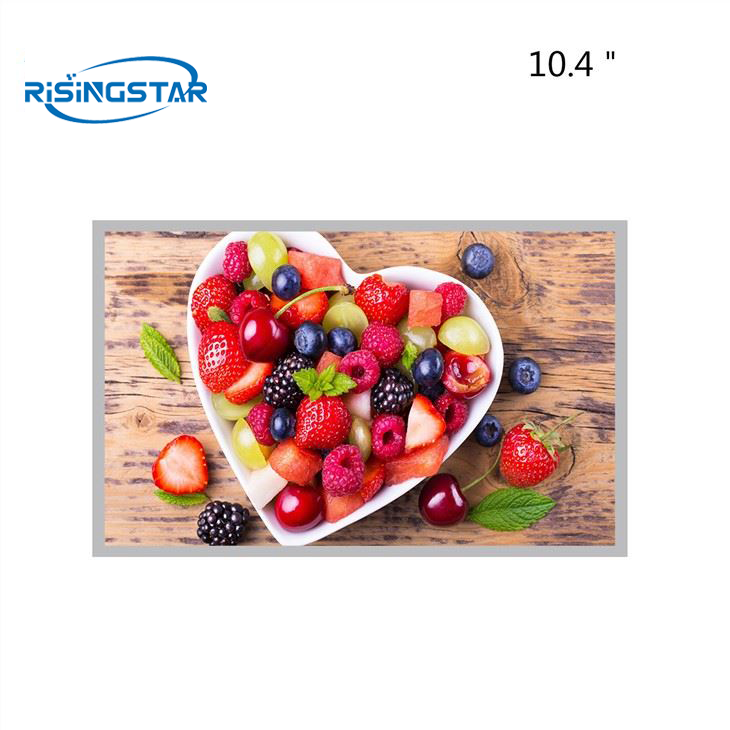

BOE BA104S01-100 Brightness 500nits TFT-LCD Panel
BOE BA104S01-100 Brightness 500nits TFT-LCD Panel
BOE BA104S01-100 Brightness 500nits TFT-LCD Panel

BOE BA104S01-100 Brightness 500nits TFT-LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.BA104S01-100

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

Ba104s01-100 is a 10.4-inch Lcd Module product launched by BOE Technology Group Co.,Ltd. (BOE) using A-SI TFT-LCD Technology. It is equipped with WLED backlight, no backlight drive and no touch. Ba104s01-100 displays a resolution of 800(RGB)×600 (SVGA), an aspect ratio of 4:3 (WIDTH: height), and the pixels are arranged in RGB vertical strips, according to the product specification with version No. Rev.1 released by BOE on December 12, 2014. Its display area size is 211.2×158.4 (width × height) mm, visual size is 215.0×162.0 (width × height) mm, appearance size is 236×176.9 (width × height)×5.9(thickness) mm, surface treatment is Clear, product net weight is 288g (Typ.). Backlight This product uses a 6S6P WLED side entry light source (top), the life of the light source is 50K hours, no backlight drive. Ba104s01-100 adopts LVDS (1 CH, 6/8-bit) signal interface, a total of 20 pins, adopts terminal connection, drive screen voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. It operates at -20 °C to 70°C and stores at -30 °C to 80°C. This model is recommended for use in industrial and medical imaging due to its white LED backlight, over 50,000 hours of life, terminal flip, 6/8 bits of optional gray scale, and other features.


brand BOE Model name BA104S01-100
size 10.4 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 800(RGB)×600 [SVGA] 96PPI Pixel configuration RGB vertical bar
Display Area 211.2×158.4 mm (H×V) Surface treatment Clear
Visual size 215.0×162.0 mm (H×V) Contrast Ratio 800:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 236×176.9×5.9 mm (H×V×D)
Viewing Angle 70/70/60/70 (Typ.)(CR≥10)
Signal interface LVDS (1 ch, 6/8-bit) ,erminal, 20 pins
work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C


The following are the same size models and parameters

brand BOE Model name AV104X0M-N10
size 10.4 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768 (XGA) 123PPI Pixel configuration RGB vertical bar
Display Area 210.4 × 157.8 (H×V) mm Surface treatment /
Visual size 215.4 × 161.8 (H×V) mm Contrast Ratio 1100:1 (Typ.) (TM)
Brightness(cd/m²) 600cd/m²(Typ.)or customized Outline dimension 230 × 180.2(H×V)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Signal interface LVDS (1 ch, 6/8-bit) ,erminal, 20 pins
work environment Storage temperature: -40 to 95 °C  Operation Temperature: -30 to 85 °C
brand BOE Model name TDA104-001V02
size 10.4 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768 (XGA) 123PPI Pixel configuration RGB vertical bar
Display Area 210.4 × 157.8 (H×V) mm Surface treatment /
Visual size / Contrast Ratio 1000:1 (Typ.) (TM)
Brightness(cd/m²) 900cd/m²(Typ.)or customized Outline dimension 235×173×10.5mm(H×V×D)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Signal interface LVDS (1 ch, 8-bit) ,erminal, 20 pins
work environment Storage temperature: -55 to 85 °C  Operation Temperature: -40 to 80 °C

10.4 inch panel
