Model No.: EV101WXM-N81

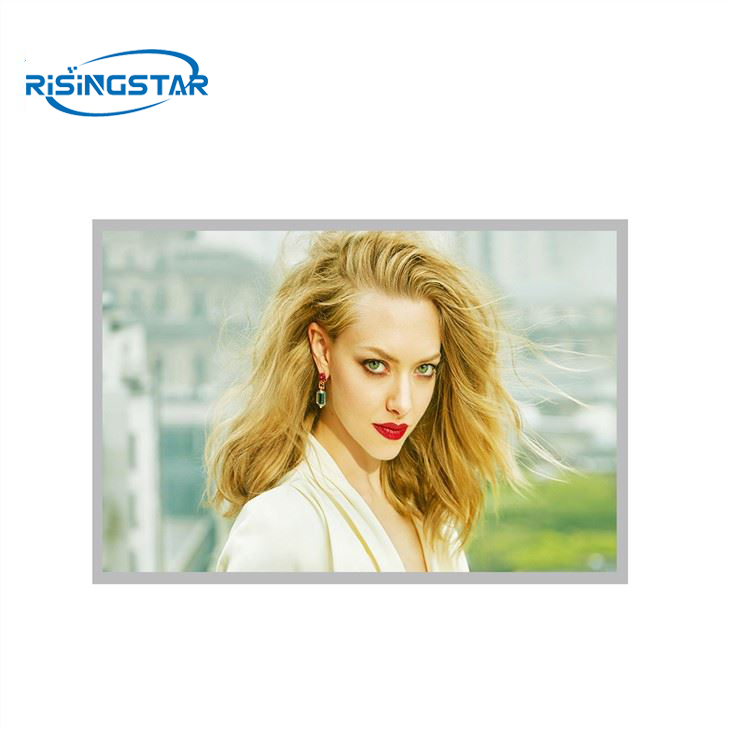

EV101WXM-N81 is a 10.1-inch Lcd Module using A-SI TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. Display resolution is 1280(RGB)×800 (WXGA), aspect ratio is 16:10 (WIDTH: height), and pixels are arranged in RGB vertical stripes. Its display area size is 216.96×135.6 (width × height) mm, visual size is 219.4×138.0 (width × height) mm, external size is 233.2×152.9 (width × height)×10.4(thickness) mm, product net weight 505g (Typ.). In terms of backlighting, this product uses a WLED side entry light source with a life of 50K hours, including LED driver. Ev101wxm-n81 uses LVDS (1 CH, 8-bit) signal interface, a total of 20 pins, uses terminal connection, drive screen voltage is 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. It operates at -20 °C to 70°C and stores at -30 °C to 80°C. Based on its white LED backlight, the life is more than 50,000 hours.
R-star originated from Shenzhen, China, We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, including semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end LCD Panel. In short, Rising has more than 5 years of high brightness backlight module technology experience, 8 years of large TFT module design, research and development, production capacity, 10 years of high-quality raw material supply chain.
| brand | BOE | Model name | EV101WXM-N81 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800, WXGA, 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96×135.6(H×V)mm | Surface treatment | / |
| Visual size | 233.2×152.9×10.4(H×V×D) mm | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 233.2×152.9×10.4(H×V×D)mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 20 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
The same size model and parameters are as follows
| brand | BOE | Model name | EV101WUM-N20 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1920(RGB)×1200, WUXGA, 224PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.806×135.504mm(H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600cd/m²(Typ.)or customized | Outline dimension | 229.45×149.22(H×V)mm |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 45 pins | ||
| work environment | Storage temperature: -25 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | AT101WSM-N11-58P0 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1024(RGB)×600, WSVGA, 117PPI | Pixel configuration | RGB vertical bar |
| Display Area | 222.72×125.28mm(H×V) | Surface treatment | Fog surface，Hard coating (3H) |
| Visual size | 226×128.6(H×V)mm | Contrast Ratio | 500:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 235×144.9×5.44mm(H×V×D) |
| Viewing Angle | 80/80/60/70(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 6/8-bit) , 60 pins , FPC | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
| brand | BOE | Model name | EV101WXM-N82 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 [WXGA] 149PPI | Pixel configuration | RGB vertical bar |
| Display Area | 216.96 × 135.6 mm (H×V) | Surface treatment | / |
| Visual size | / | Contrast Ratio | 900:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 228.6 ×149.2×6 mm (H×V×D) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | ||
| Signal interface | LVDS (1 ch, 8-bit) ,erminal, 40 pins | ||
| work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20 to 70 °C |
