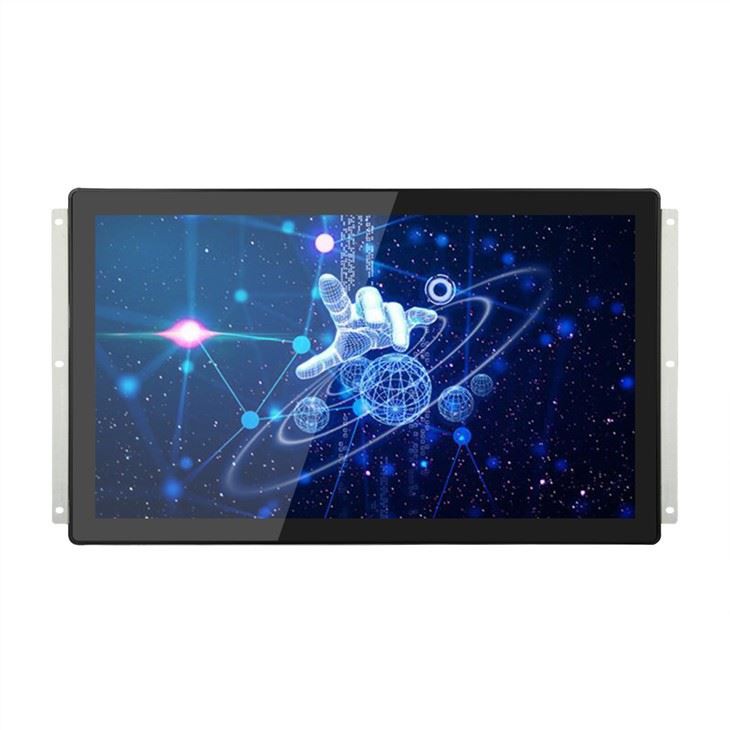

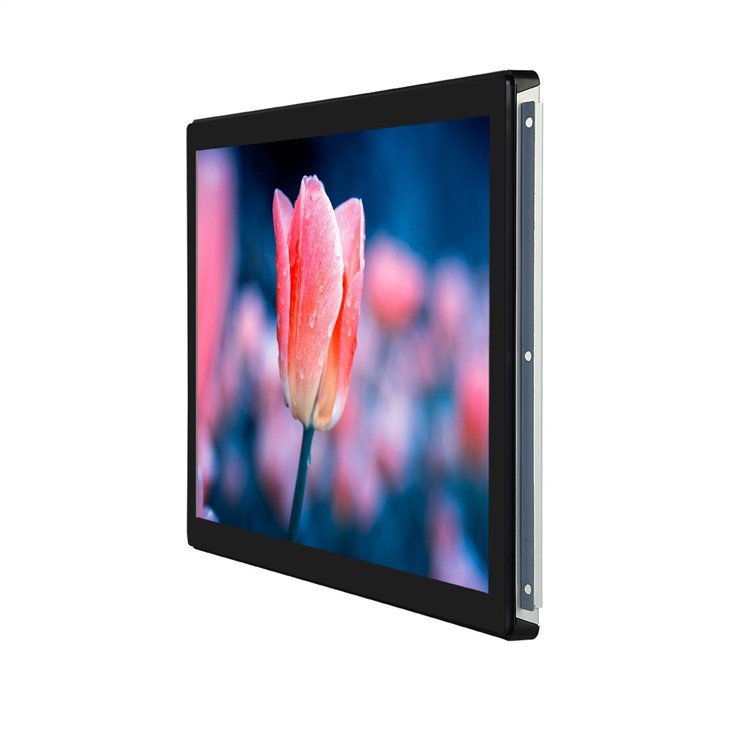

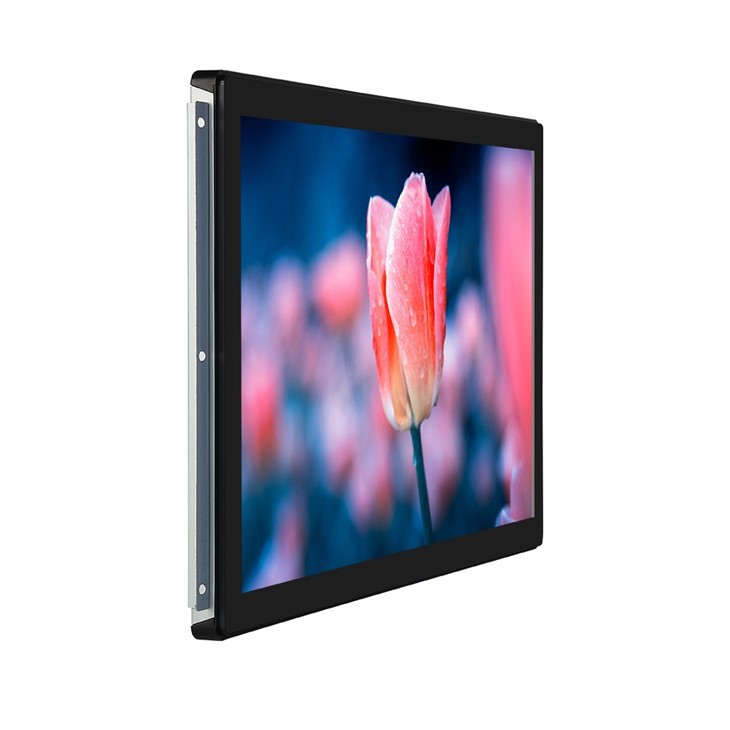

21.5" BOE UV215FHM-N10 TFT LCD Panel Module

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

UV215FHM-N10 is a 21.5-inch liquid crystal module with a-Si TFT-LCD technology, the display resolution is 1920(RGB)×1080(FHD), the aspect ratio is 16:9 (width:height), and the pixel adopts RGB is arranged in vertical stripes. Its display area size is 476.64 × 268.11 (W × H) mm, the visible size is 479.8 × 271.3 (W × H) mm, and the appearance size is 495.6 (W) × 292.2 (H) × 11.2 (D) mm.


Treated as matte (Haze 25%), Hard coating (3H), its working temperature is -20 ~ 80°C, and its storage temperature is -30 ~ 85°C. For Digital Signage. Edge-type light source, the service life of the light source is 30K hours, using LVDS (2 ch, 8-bit) signal interface, a total of 30 pins, using terminal connection, the drive voltage is 5.0V (Typ.).


21.5-2

Q:Is there any other size or specification can be choose?

A:If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.


Q:What is your pre-sale and after-sale service?

A:In terms of pre-sales service, we have a professional sales team and technical team, who are willing to answer your questions within 24 hours.For after-sales service, we can instruct how to install, use and replace damaged modules.


Q:How can we maintain a good long-term business relationship?

A:We maintain good quality and competitive prices to ensure that customers benefit; we respect every customer and treat them as friends. No matter where they come from, we sincerely do business with them and make friends.


brandBOEModel nameUV215FHM-N10
size21.5 inchScreen typea-Si TFT-LCD,Lcd Module
resolution ratio1920(RGB)×1080 FHD 102PPIPixel configurationRGB vertical bar
Display Area476.64×268.11(H×V)mmSurface treatmentFog surface(Haze 25%),Hard coating (3H)
Visual size/Contrast Ratio1000:1 (Typ.) (TM)
Brightness(cd/m²)500cd/m²(Typ.)or customizedOutline dimension495.6×292.2×11.2mm(H×V×D)
Viewing Angle89/89/89/89(Typ.)(CR≥10)

Signal interface30 pins   LVDS (2 ch, 8-bit),erminal

work environmentStorage temperature: -30 to 85 °C  Operation Temperature: -20 to 80 °C


Parameters of the same size model

brandBOEModel nameDV215FHM-R01
size21.5 inchScreen typea-Si TFT-LCD,LCD module
resolution ratio1920(RGB)×1080 FHD 102PPIPixel configurationRGB vertical bar
Display Area476.64×268.11(H×V)mmSurface treatmentFog surface(Haze 25%),Hard coating (3H)
Open zone479.8×271.3(H×V)mmContrast Ratio1000:1 (Typ.) (TM)
Brightness(cd/m²)500cd/m²(Typ.)or customizedOutline dimension495.6×292.2×11.2mm(H×V×D)
Viewing Angle89/89/89/89(Typ.)(CR≥10)

Signal interface30 pins   LVDS (2 ch, 8-bit),erminal

work environmentStorage temperature: -20 to 85 °C  Operation Temperature: -20 to 85 °C
