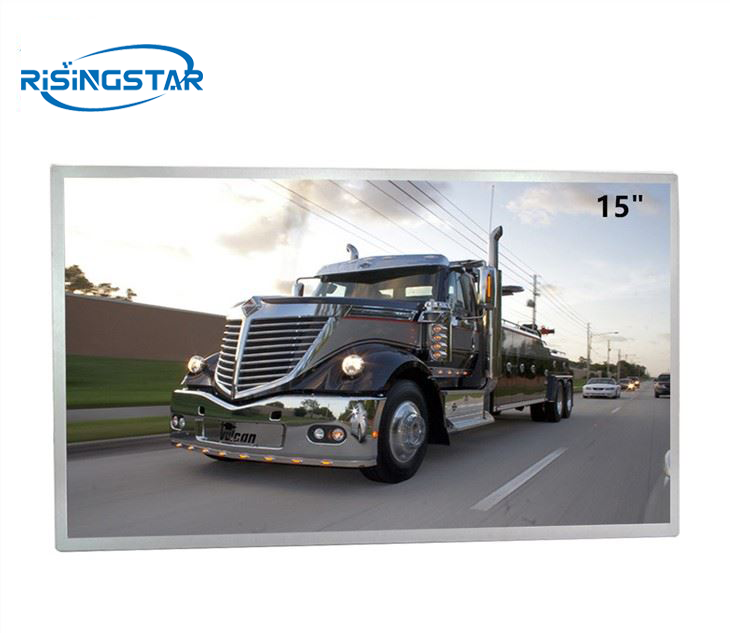

BOE TDA150-005V01 15" Display Screen Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.TDA150-005V01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

TDA150-005V01 a-Si TFT-LCD 15-inch liquid crystal module, typical features are white LED backlight, including LED driver, matte surface. Its operating temperature is -20 ~ 70°C, and its storage temperature is -30 ~ 80°C. The display resolution is 1600 (RGB) × 1200 (UXGA), and the pixels are arranged in RGB vertical stripes. Its display area size is 304.8×228.6 (W×H) mm, and the external dimension is 317.4 (W)×242 (H) mm.

It is an edge-type light source with a lifespan of 30K hours, including LED drivers. TDA150-005V01 adopts LVDS (2 ch, 8-bit) signal interface, a total of 40 pins, which are connected by terminals, and the drive voltage is 3.3V (Typ.).

15-2

Q:who are we?

A:R-star originated from Shenzhen, China,  We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, There are more than 100 employees, including 20 experienced engineers. The company has passed ISO9001/ISO14001/CCC/CE/FCC/ROHS/UL and other certifications, has a high-level R&D platform, and has become an ODM/OEM partner of many world-class companies.Our markets cover Asia, North America, Africa, Middle East, Europe, Central and South America and Oceania.We believe that if you give us a chance to serve, we will be your trusted supplier in China.


Q:Are you manufacturer(factory)?

A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


Q:how can we guarantee quality?

A:Always final Inspection before shipment.


brand BOE Model name TDA150-005V01
size 15 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1600(RGB)×1200 [UXGA] 133PPI Pixel configuration RGB vertical bar
Display Area 304.8×228.6mm (H×V) Surface treatment Fog surface(Haze 25%),Hard coating (3H)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Min.)(CR≥10) Outline dimension 317.4 × 242 mm (H×V)
Signal interface LVDS (2 ch, 8-bit) ,erminal, 40 pins

work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C

The same size and model are as follows:

brand BOE Model name RT150X0M-N10
size 15 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768, XGA, 85PPI Pixel configuration RGB vertical bar
Display Area 304.8×228.6mm (H×V) Surface treatment Fog surface(Haze 25%),Hard coating (3H)
Brightness(cd/m²) 1100cd/m²(Typ.)or customized Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Min.)(CR≥10) Outline dimension 326.5×253.5(H×V)
Signal interface LVDS (1 ch, 8-bit) ,erminal, 20 pins

work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C


brand BOE Model name DV150X0M-N16
size 15 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1024(RGB)×768, XGA, 85PPI Pixel configuration RGB vertical bar
Display Area 304.128×228.096(H×V) mm Surface treatment Fog surface(Haze 25%),Hard coating (3H)
Brightness(cd/m²) 600cd/m²(Typ.)or customized Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89(Min.)(CR≥10) Outline dimension 326.5×253.5×9.7mm(H×V×D)
Signal interface 20 pins   LVDS (1 ch, 8-bit) , erminal

work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C


brand BOE Model name RV150U0M-N00
size 15 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1600(RGB)×1200 [UXGA] 133PPI Pixel configuration RGB vertical bar
Display Area 304.8 × 228.6 mm (H×V) Surface treatment Fog surface(Haze 25%),Hard coating (3H)
Visual size 307.2 × 231 mm (H×V) Contrast Ratio 1000:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 317.4×242 mm(H×V×D)
Viewing Angle 85/85/85/85(Min.)(CR≥10)

Signal interface LVDS (2 ch, 8-bit),40 pins, erminal

work environment Storage temperature: -30 to 80 °C  Operation Temperature: -20 to 70 °C
