12.3"AV123Z7M-N11 Highlight LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.AV123Z7M-N11

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

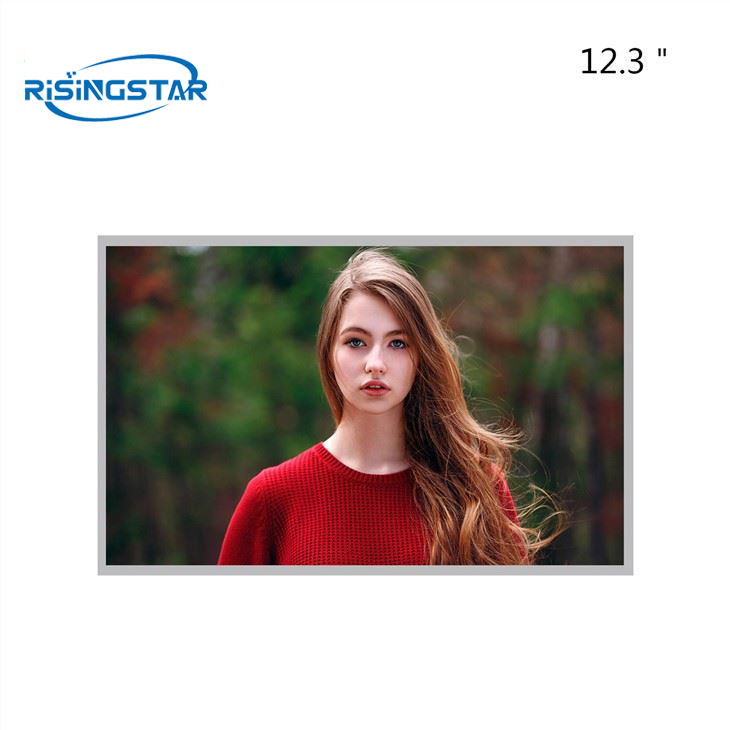

AV123Z7M-N11, 12.3-inch liquid crystal module with a-Si TFT-LCD, resolution 1920(RGB)×720, the aspect ratio is 8:3 (width:height), and the pixels are arranged in RGB vertical stripes.Its display area size is 292.032×109.512 (width×height) mm, and the visible size is 295.03×112.51(W×H) mm, the appearance dimension is 307.9×130.27(W×H) mm, and the net weight of the product is 520±50g.


10.1 inch panel

Q:who are we?

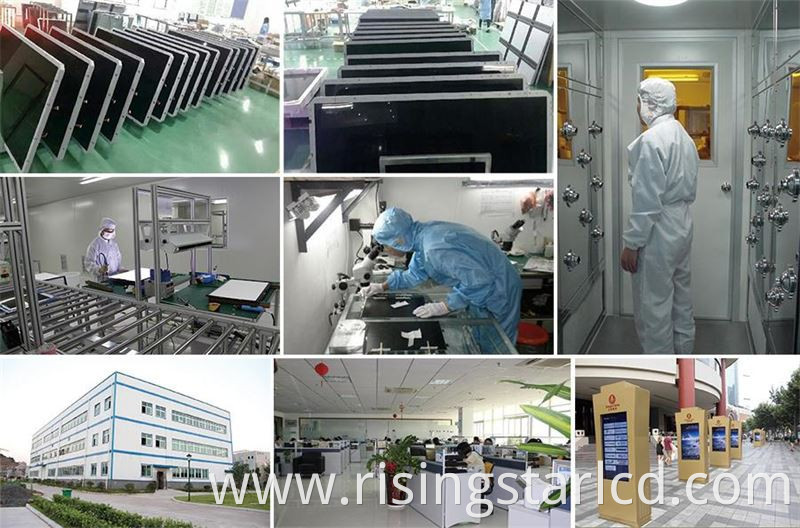

A:R-star originated from Shenzhen, China,  We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, There are more than 100 employees, including 20 experienced engineers. The company has passed ISO9001/ISO14001/CCC/CE/FCC/ROHS/UL and other certifications, has a high-level R&D platform, and has become an ODM/OEM partner of many world-class companies.Our markets cover Asia, North America, Africa, Middle East, Europe, Central and South America and Oceania.We believe that if you give us a chance to serve, we will be your trusted supplier in China.


Q:Are you manufacturer(factory)?

A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


Q:how can we guarantee quality?

A:Always final Inspection before shipment;





brand BOE Model name AV123Z7M-N11
size 12.3 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×720  167PPI Pixel configuration RGB vertical bar
Display Area 292.032(H)×109.512(V) mm Surface treatment
Visual size 295.03(H)×112.51(V) mm Contrast Ratio 1000:1 (Typ.) (TM)
Brightness(cd/m²) 800cd/m²(Typ.)or customized Outline dimension 307.9(H)×130.27(V)mm
Viewing Angle 80/80/80/80(Min.)(CR≥10)

Signal interface LVDS (2 ch, 8-bit),41 pins, erminal

work environment Storage temperature: -40 to 90 °C  Operation Temperature: -30 to 85 °C


Hot Tags: 12.3"av123z7m-n11 highlight lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, digital screen 55 inches, square Lcd Display, Large Outdoor Lcd Screen, Outdoor Tft Lcd, lcd advertising display screen, big outdoor lcdLCD Panel, LCD module, High Brightness Display.
