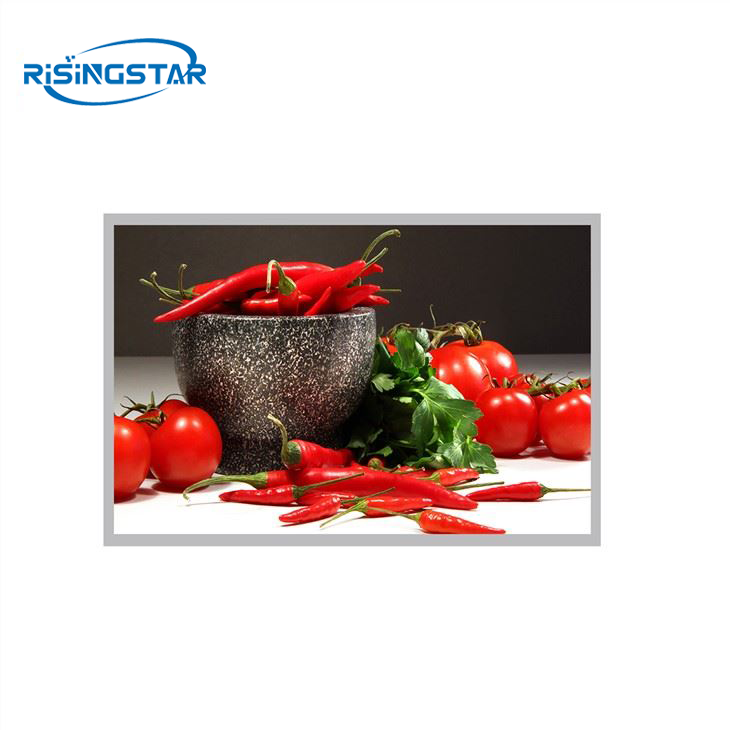

The LP156WFC-SPU2 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes.
The display area size of LP156WFC-SPU2 is 344.16×193.59 (W×H) mm, the external size is 350.66×205.84 (W×H)×4.25 (D) mm, and the surface treatment is mirror (Haze 0%).
[The industry's most complete industrial panel product lineup]
Rising star offers a complete product line from 10.1 "to 100" for a wide range of applications, featuring high quality, high reliability, strong durability, high weather resistance, long operation and long life cycle industrial-grade display panels for all types of demanding environments.
[One-stop service, global operation and local support]
Rising star provides customers with one-stop shopping service, and products have passed rigorous testing to ensure that the quality meets the specifications; And establish a highly informationized quality management system according to international quality standards. Worldwide operations, to provide perfect technical consulting, product support and business services.
brand | RisingStar Display (RisingStar Display) | Model name | LP156WFC-SPU1 (RisingStarD0630) |
size | 15.6" | Screen type | a-Si TFT-LCD,Lcd Module |
resolution | 1920(RGB)×1080 [FHD] 141PPI | Pixel configuration | RGB vertical bar |
Display size | 344.16 × 193.59 mm (H×V) | Surface treatment | Mirror (Haze 0%) |
Brightness(cd/m²) | 500 cd/m² (Typ.) | contrast | 1400:1 (Typ.) [transmission] |
Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Appearance of size | 350.66×205.84×4.25(H×V×D)mm |
Signal system | 30 pins eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , termina | | |
Maximum rated | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C | | |
