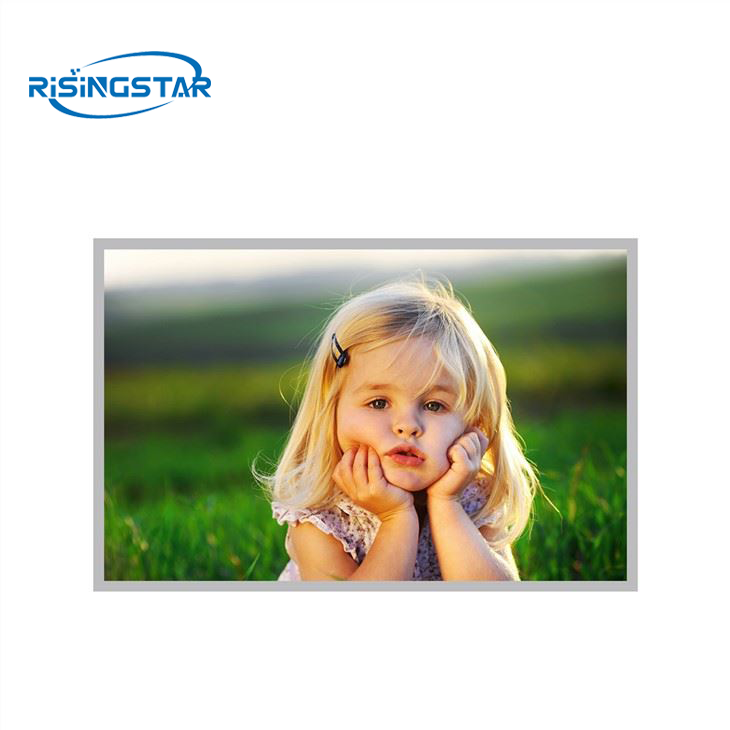

12.3Inch LA123WF1-SR03 LCD Panel
12.3Inch LA123WF1-SR03 LCD Panel
12.3Inch LA123WF1-SR03 LCD Panel

12.3Inch LA123WF1-SR03 LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA123WF1-SR03

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The LA123WF1-SR03 display resolution is 1920(RGB)×720, the aspect ratio is 8:3 (width:height), and the pixels are arranged in RGB vertical stripes. The size of the display area of LA123WF1-SR03 is 292.032×109.512 (width×height) mm, the appearance size is 310×128 (width×height)×16.2 (thickness) mm, the surface treatment is matte, Hard coating.


[The industry's most complete industrial panel product lineup]

 Rising star offers a complete product line from 10.1" to 100" for a wide range of applications, featuring high quality, high reliability, strong durability, high weather resistance, long operation and long life cycle industrial-grade display panels for all types of demanding environments.

21.5-2



brand RisingStar Display (RisingStar Display) Model name LA123WF1-SR03
size 12.3 inch Screen type a-Si TFT-LCD,Lcd Module
resolution 1920(RGB)×720   167PPI Pixel configuration RGB vertical bar
Display size 292.032×109.512(H×V)mm Surface treatment Fog surface, Hard coating (3H)
Brightness(cd/m²) 600 cd/m² (Min.) or customized contrast 800:1 (Min.) (TM)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Appearance of size 310×128×16.2mm(H×V×D)
Signal system RSDS (2 Channel) , 110 pins , FPC

Maximum rated Storage temperature: -40 ~ 95 °C  Working temperature: -40 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²)
