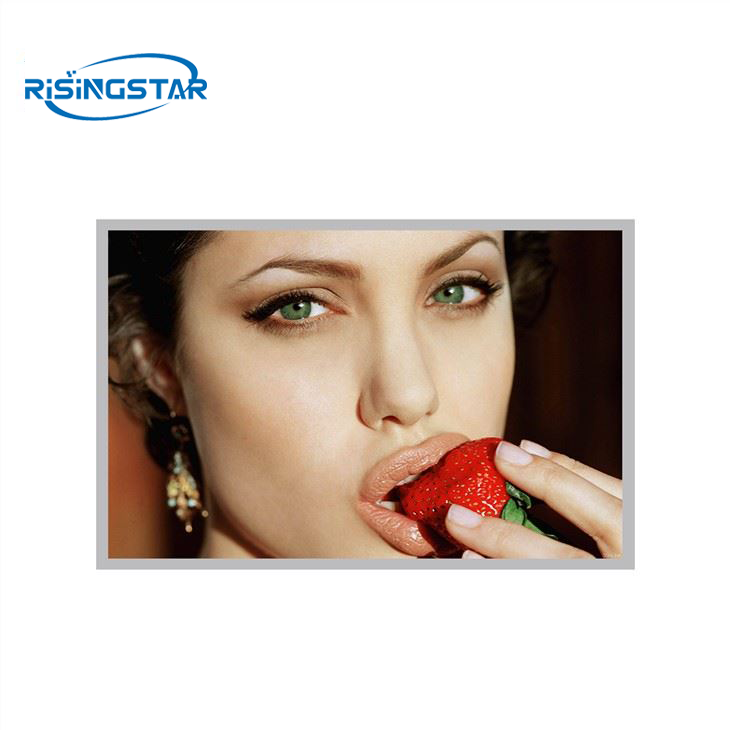

RisingStar Display 12.3"LA123WF4-SR03 LCD Dispiay

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA123WF4-SR03

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The operating temperature of LA123WF4-SR03 is -40 ~ 85°C, and the storage temperature is -40 ~ 95°C. The display resolution of LA123WF4-SR03 is 1920(RGB)×720, and the aspect ratio is 8:3 (width:height) , the pixels are arranged in RGB vertical stripes.

The display area size of LA123WF4-SR03 is 292.032×109.512 (W×H) mm, the visible size is 296.03×113.5 (W×H) mm, and the appearance size is 310 (W)×128(H)×10.75(D) mm , the surface treatment is Hard coating.


Standardization and customization to meet various environmental needs.

Rising-star general-purpose display panels feature ultra-high resolution, outdoor visibility, and long product life. Product applications cover automatic teller machines (ATM), terminal point of sale machines (POS), interactive information kiosks (KIOSK), industrial computers (IPC), security monitoring, commercial entertainment machines, medical equipment, factory automation, in-flight entertainment and marine displays Wait. We also provide customized design and integrated touch solutions to help customers develop competitive terminal devices.

LCD Panel

brandRisingStar Display (RisingStar Display)Model nameLA123WF4-SR03
size12.3 inchScreen typea-Si TFT-LCD,Lcd Module
resolution1920(RGB)×720   167PPIPixel configurationRGB vertical bar
Display size292.032×109.512(H×V)mmSurface treatmentHard coating
Brightness(cd/m²)600 cd/m² (Min.) or customizedcontrast800:1 (Min.) (TM)
Viewing Angle89/89/89/89 (Min.)(CR≥10)Appearance of size310×128×10.75mm(H×V×D)
Signal systemRSDS (2 Channel) , 110 pins , FPC

Maximum ratedStorage temperature: -40 ~ 95 °C  Working temperature: -40 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²)
