The G121S1-L02 display resolution is 800 (RGB) × 600 (SVGA), the aspect ratio is 4:3 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 246×184.5 (W×H) mm, the visible size is 249.0×187.5 (W×H) mm, the appearance size is 260.5×204 (W×H)×8.9 (D) mm, surface treatment For the matte surface (Haze 22%), Hard coating (3H).
The operating temperature of G121S1-L02 is -30 ~ 80°C, and the storage temperature is -30 ~ 85°C.
[The industry's most complete industrial panel product lineup]
Rising star offers a complete product line from 10.1 "to 100" for a wide range of applications, featuring high quality, high reliability, strong durability, high weather resistance, long operation and long life cycle industrial-grade display panels for all types of demanding environments.
[One-stop service, global operation and local support]
Rising star provides customers with one-stop shopping service, and products have passed rigorous testing to ensure that the quality meets the specifications; And establish a highly informationized quality management system according to international quality standards. Worldwide operations, to provide perfect technical consulting, product support and business services.

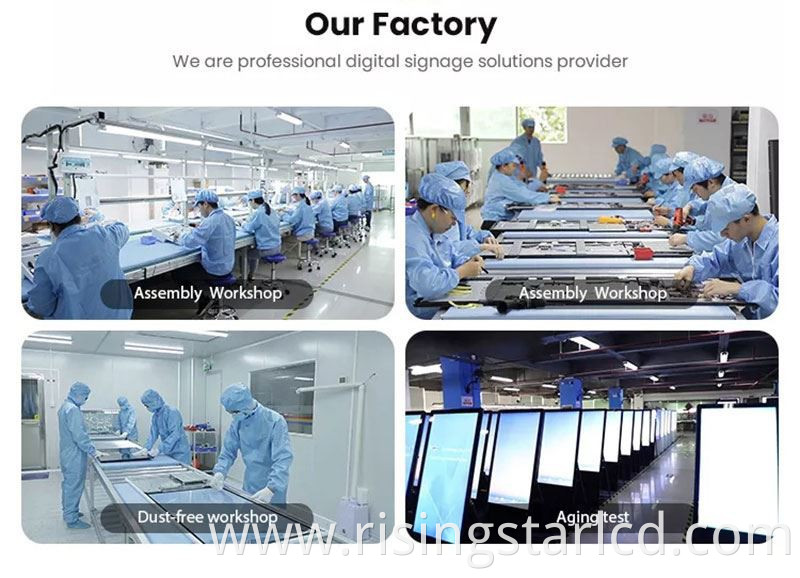

Q:Are you manufacturer(factory)?
A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.
Q:what can you buy from us?
A:semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end LCD Panel.

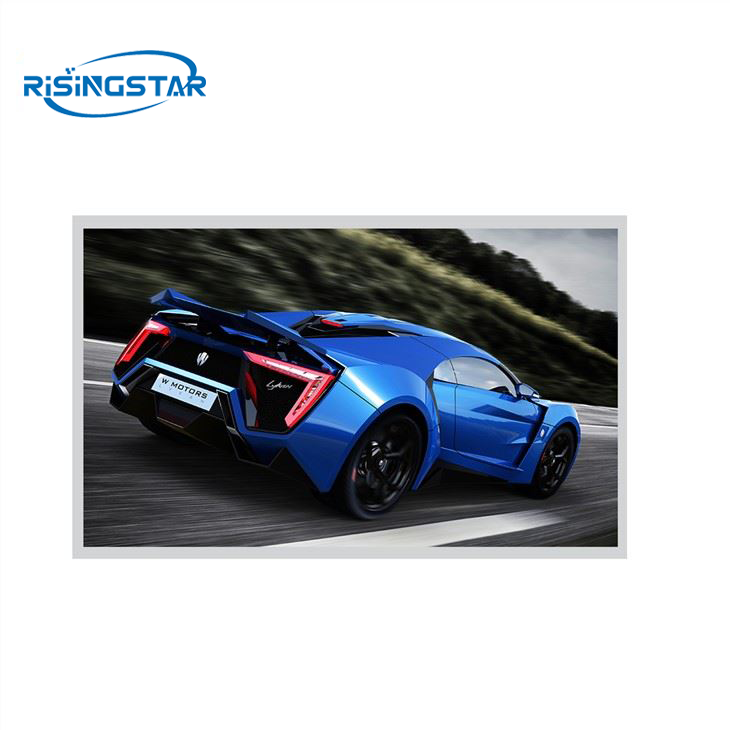

brand | Innolux | Model name | G121S1-L02 |
size | 12.1 inch | Screen type | a-Si TFT-LCD,Lcd Module |
resolution ratio | 800(RGB)×600, SVGA, 82PPI | Pixel configuration | RGB vertical bar |
Display size | 246(W)×184.5(H) mm | Surface treatment | Fog surface, Hard coating (3H) |
Open zone | 249.0(W)×187.5(H) mm | Contrast Ratio | 1500:1 (Typ.) [transmission] |
Brightness(cd/m²) | 600 cd/m² (Min.) or customized | Outline dimension | 260.5(W)×204(H) ×8.9(D) mm |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | | |
Signal interface | 20 pins LVDS (1 ch, 6/8-bit) ,terminal | | |
work environment | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 80 °C | | |
