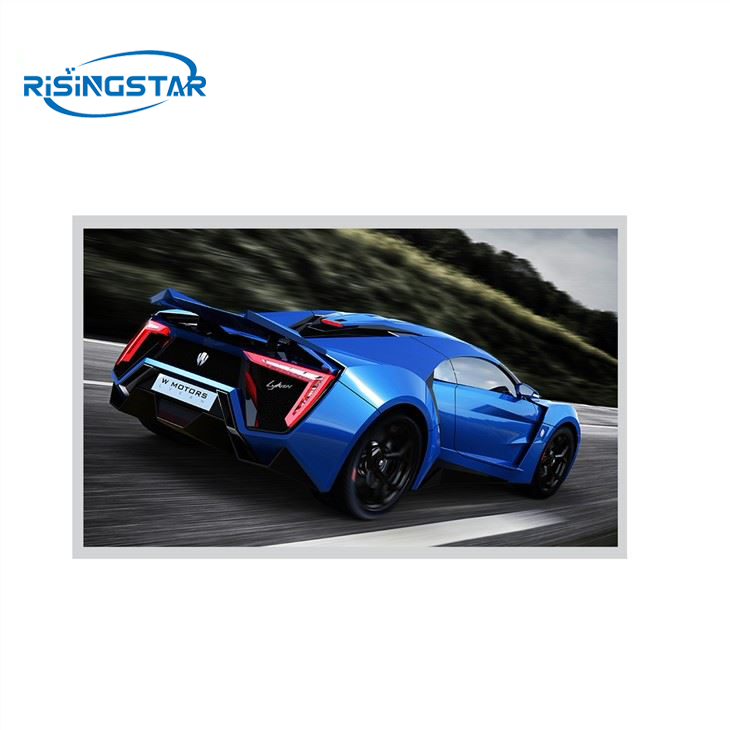

23.5" CSOT MG2350S01-1 Specification

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.MG2350S01-1

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The working temperature of MG2350S01-1 is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. It is suitable for Digital Signage and cutting Bar Screen.


The display resolution of MG2350S01-1 is 1920(RGB)×360, its display area size is 584.64×109.62 (width×height) mm, the appearance size is 596.42(width)×122.67(height) mm, and the surface treatment is matte ( Haze 25%).


MG2350S01-1 adopts LVDS (2 ch, 8-bit) signal interface, a total of 30 pins, connected by terminals, and the drive voltage is 12.0V (Typ.).

high brightness LCD

brand CSOT Model name MG2350S01-1
size 23.5inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×360 Pixel configuration RGB vertical bar
Display Area 584.64×109.62(H×V)mm Surface treatment Fog surface(Haze 25%)
Visual size / Contrast Ratio 4000:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 596.42×122.67(H×V)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Backlight type WLED,Including LED driver
Signal interface 30 pins   LVDS (2 ch, 8-bit),erminal work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
supply voltage 12.0V (Typ.)
