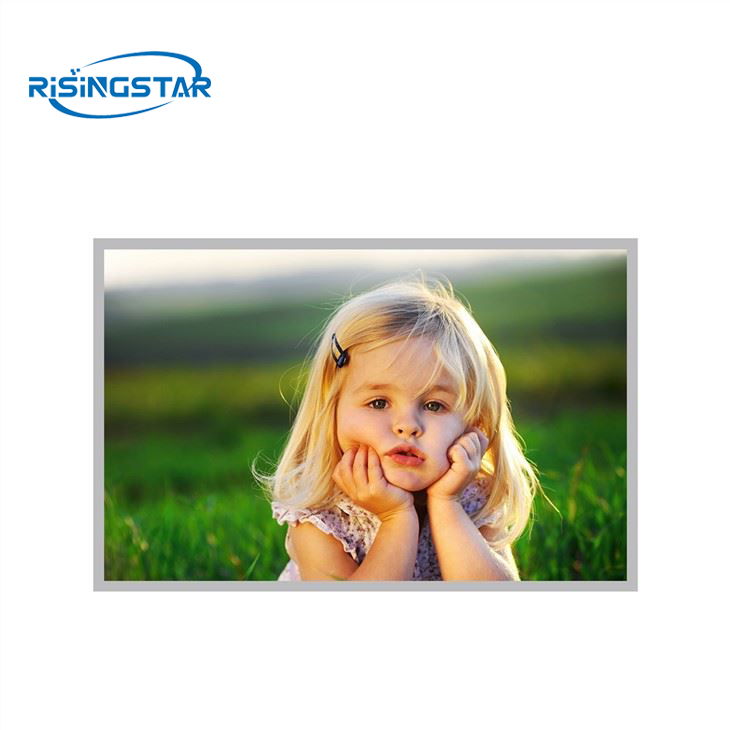

LQ156M1RisingStar21 NEW SHARP TFT-LCD Module
LQ156M1RisingStar21 NEW SHARP TFT-LCD Module
LQ156M1RisingStar21 NEW SHARP TFT-LCD Module

LQ156M1RisingStar21 NEW SHARP TFT-LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LQ156M1RisingStar21

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The LQ156M1RisingStar21 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes.


The display area size of LQ156M1RisingStar21 is 344.16 × 193.59 (W × H) mm, the visible size is 349.0 × 198.4 (W × H) mm, the external size is 370 × 217 (W × H) × 9.8 (D) mm, surface treatment Matte finish, Hard coating (3H), net weight 950g (Max.)


In terms of backlight, a WLED light-emitting edge light source is used, and the service life of the light source is 50K hours.The operating temperature of the LQ156M1RisingStar21 is 0 ~ 70°C, and the storage temperature is -30 ~ 70°C.


brand Sharp Model name LQ156M1RisingStar21
size 15.6inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×1080 FHD Pixel configuration RGB vertical bar
Display Area 344.16×193.59(H×V)mm Surface treatment Fog surface,Hard coating (3H)
Visual size 349.0×198.4(H×V)mm Contrast Ratio 800:1 (Typ.) (TM)
Brightness(cd/m²) 600cd/m²(Typ.)or customized Outline dimension 370×217×9.8(H*V*D) mm
Viewing Angle 80/80/80/65 (Typ.)(CR≥10) work environment Storage temperature: 0 to 70 °C  Operation Temperature: -30 to 70 °C
Signal interface 30 pins LVDS (2 ch, 8-bit),erminal

supply voltage 3.3V (Typ.)

LCD Panel
