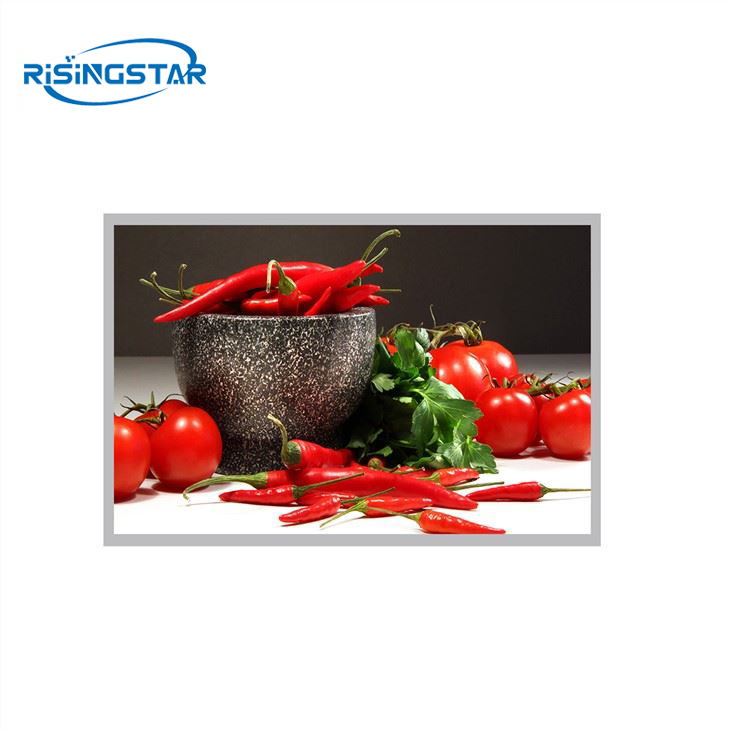

15inch SHARP LQ150X1RisingStar96 TFT LVDS Panel
15inch SHARP LQ150X1RisingStar96 TFT LVDS Panel
15inch SHARP LQ150X1RisingStar96 TFT LVDS Panel

15inch SHARP LQ150X1RisingStar96 TFT LVDS Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LQ150X1RisingStar96

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The working temperature of LQ150X1RisingStar96 is 0 ~ 65°C, and the storage temperature is -30 ~ 70°C. It is suitable for industrial applications, outdoor highlights, games. The surface treatment is matte, Hard coating (3H), and the net weight of the product is 950g (Max. ). In terms of backlight, the side-type light source has a lifespan of 30K hours.


The LQ150X1RisingStar96 display resolution is 1024 (RGB) × 768 (XGA), the aspect ratio is 4:3 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of LQ150X1RisingStar96 is 304.128×228.096 (W×H) mm, the visible size is 307.2×231.1 (W×H) mm, and the external size is 326.5 (W)×253.5 (H)×10.1 (D) mm.


brand Sharp Model name LQ150X1RisingStar96
size 15inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1024(RGB)×768 [XGA] 85PPI Pixel configuration RGB vertical bar
Display Area 304.128×228.096mm(H×V) Surface treatment Fog surface,Hard coating (3H)
Visual size 307.2×231.1mm(H×V) Contrast Ratio 800:1 (Typ.) (TM)
Brightness(cd/m²) 1050cd/m²(Typ.)or customized Outline dimension 326.5×253.5×10.1 mm(H×V×D)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) work environment Storage temperature: -30 to 70 °C  Operation Temperature: 0 to 65 °C
Signal interface LVDS (1 ch, 6/8-bit),erminal,20 pins

supply voltage 3.3V (Typ.)

LCD Panel
