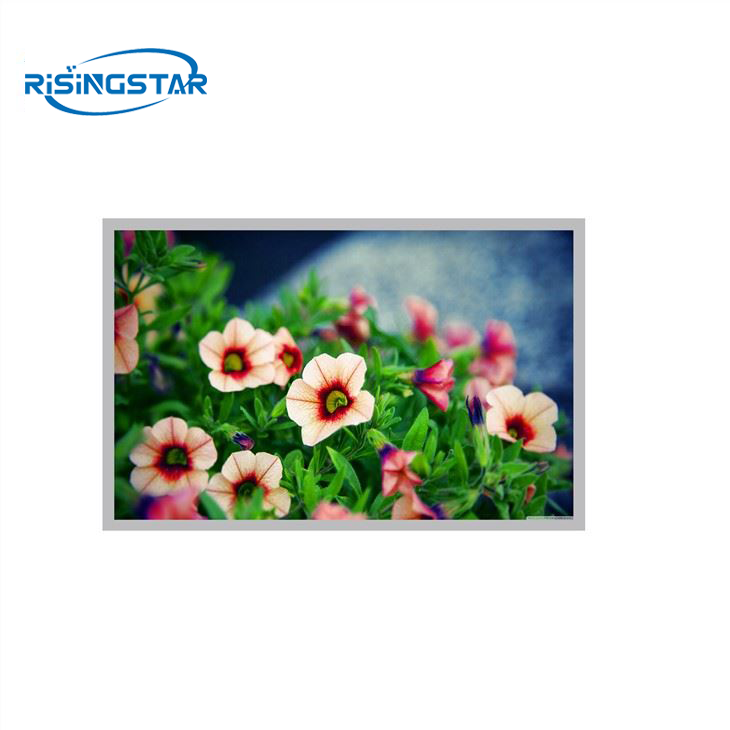

LQ150X1LW96 SHARP TFT LCD Panel LVDS Screen
LQ150X1LW96 SHARP TFT LCD Panel LVDS Screen
LQ150X1LW96 SHARP TFT LCD Panel LVDS Screen

LQ150X1LW96 SHARP TFT LCD Panel LVDS Screen

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LQ150X1LW96

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The LQ150X1LW96 display resolution is 1024 (RGB) × 768 (XGA), the aspect ratio is 4:3 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of LQ150X1LW96 is 304.128 × 228.096 (W × H) mm, the visible size is 307.4 × 231.3 (W × H) mm, and the external size is 326.5 (W) × 253.5 (H) × 10.1 (D) mm. Matte finish, Hard coating (3H), net weight 950g (Max.)


The backlight adopts an edge-type light source, its operating temperature is -20 ~ 70°C, and its storage temperature is -25 ~ 70°C, which is suitable for industrial and medical imaging.


brandSharpModel nameLQ150X1LW96
size15inchScreen typea-Si TFT-LCD,Lcd Module
resolution ratio1024(RGB)×768 [XGA] 85PPIPixel configurationRGB vertical bar
Display Area304.128×228.096mm(H×V)Surface treatmentFog surface,Hard coating (3H)
Visual size307.2×231.1mm(H×V)Contrast Ratio1500:1 (Typ.) (TM)
Brightness(cd/m²)500cd/m²(Typ.)or customizedOutline dimension326.5×253.5×10.1(H×V×D)mm
Viewing Angle85/85/85/85 (Typ.)(CR≥10)work environmentStorage temperature: -25 to 70 °C  Operation Temperature: -20 to 70 °C
Signal interfaceLVDS (1 ch, 6/8-bit),erminal,20 pins

supply voltage3.3V (Typ.)

lcd display


Q:Are you manufacturer(factory)?

A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.
