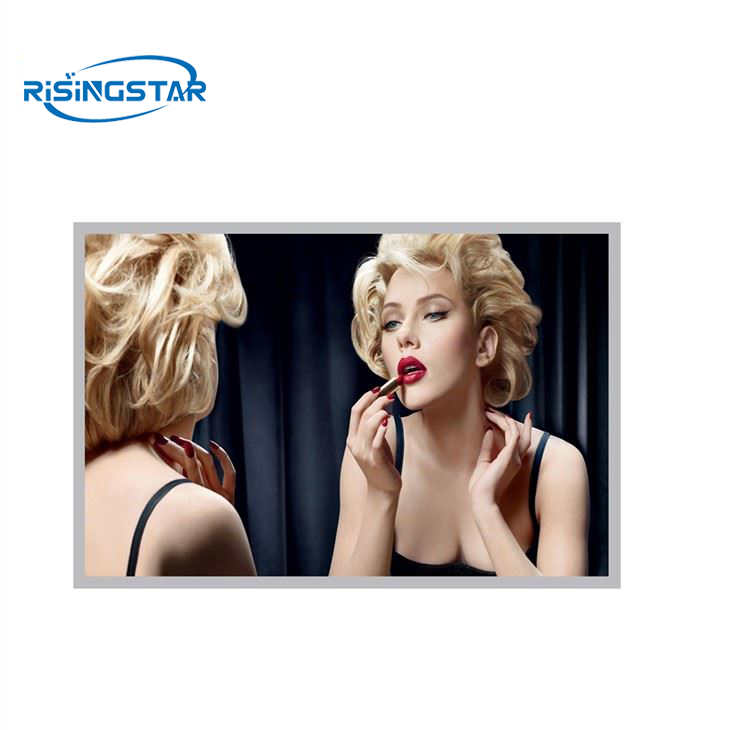

15.4 Inch RisingStar LTN154X9-L01
15.4 Inch RisingStar LTN154X9-L01
15.4 Inch RisingStar LTN154X9-L01

15.4 Inch RisingStar LTN154X9-L01

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LTN154X9-L01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

LTN154X9-L01 This module is equipped with CCFL backlight, no backlight driver, no touch. Its typical features are: Mirror surface. Its operating temperature is 0 ~ 50°C, and its storage temperature is -20 ~ 60°C.


The LTN154X9-L01 display resolution is 1280 (RGB) × 800 (WXGA), the aspect ratio is 16:10 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 331.2×207 (width×height) mm, the visible size is 335.0×210.7 (width×height) mm, and the appearance size is 344 (width)×226 (height)×7 (thickness) mm. Treated to mirror surface (Haze 0%), Hard coating (3H).

10.1 inch panel

Q:What is your pre-sale and after-sale service?

A:In terms of pre-sales service, we have a professional sales team and technical team, who are willing to answer your questions within 24 hours.For after-sales service, we can instruct how to install, use and replace damaged modules.


Q:How can i find the right product?

A:Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.

high brightness LCD

brand RisingStar Model name LTN154X9-L01
size 15.4 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1280(RGB)×800 Pixel configuration RGB vertical bar
Display Area 331.2×207(H×V)mm Surface treatment Glare (Haze 0%), Hard coating (3H)
Visual size 335.0×210.7(H×V)mm Contrast Ratio 600:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 344×226×7(H×V×D)mm
Viewing Angle 65/65/50/50 (Typ.)(CR≥10) work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
Signal interface LVDS (1 ch, 6-bit) ,erminal,30pins

supply voltage 12.0V (Typ.)
