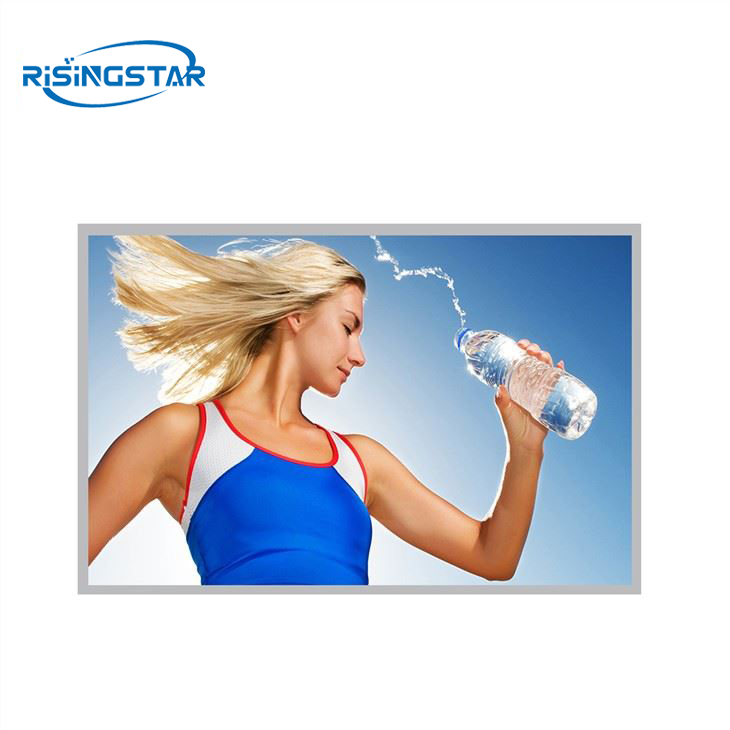

21.5 Inch 1000nit LCD Panel
21.5 Inch 1000nit LCD Panel
21.5 Inch 1000nit LCD Panel

21.5 Inch 1000nit LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

21.5" Daylight LCD screen with High Brightness LED Backlight Module

1.Backlight module structure: all-aluminum structure, thin, beautiful, effective heat dissipation

2.LED backlight: white LED lamp beads, high brightness, 50K hours life, perfect brightness uniformity

3.Assemble the light bar: aluminum structure + LED backlight, fix the LED backlight on the aluminum structure to facilitate heat conduction.

4.Light bar: aluminum structure + LED backlight, fix the LED backlight on the aluminum


21.5 inch  Lcd Module Sunlight Readable Lcd Panel

Ultra slim 21.5 inch lcd module connect the wires and attach 3M reflective film to make the backlight reflect more uniform to the original brand open cell. Enter the 10,000-class clean room and check the light source to ensure that the LED backlight works normally.


Ultra Slim 21.5 inch LCD Module with Place Optical Flims

Slim High Brightness Lcd module places optical flims: diffusion plate, diffusion film, gloss enhancement film,etc to improve the brightness and uniformity of the backlight.


Slim High Hrightness LCD Module with RisingStar/RisingStar/RisingStar/BOE,etc Original Open Cell

This slim 21.5 inch lcd module assemble RisingStar/RisingStar/RisingStar/BOE,etc original open cell (normal grade and industrial grade high tni110℃)


Ultra Slim 21.5 inch LCD Module with T-con Board

21.5 inch light lcd module assembles T-con board, LED driver boards, constant DC12V power supply.


21.5 inch High Hrightness Module with Brightness Test

This slim high brightness 21.5 inch lcd module, have passed brightness test, color temperature brightness test, Topcon BM-7 color brightness tester.


Ultra Slim 21.5 inch LCD Module with Packaging

This 21.5 inch light lcd module with thick cardboard box plus EPE foam, wooden box if necessary.


brand RisingStar Model name P215HAN02.0
size 21.5.0" Screen type a-Si TFT-LCD,LCD module
resolution 1920(RGB)×1080, FHD, 102PPI Pixel configuration RGB vertical bar
Display size 476.064(H)×267.786(V) mm Appearance of size 501.1(H)×292.2(V) ×16.12(H) mm
Visual size 480.7(H)×271.8(V) mm Surface treatment Mist side,Hard coating (3H)
Brightness(cd/m²) 500-1500 cd/m² (Typ.) contrast 1000 : 1 (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Apply to Digital Signage and outdoor highlighting
Signal system 30 pins  LVDS (2 ch, 8-bit) , terminal

Maximum rated Storage temperature: -20 ~ 60 °C    Working temperature: -20 ~ 50 °C
