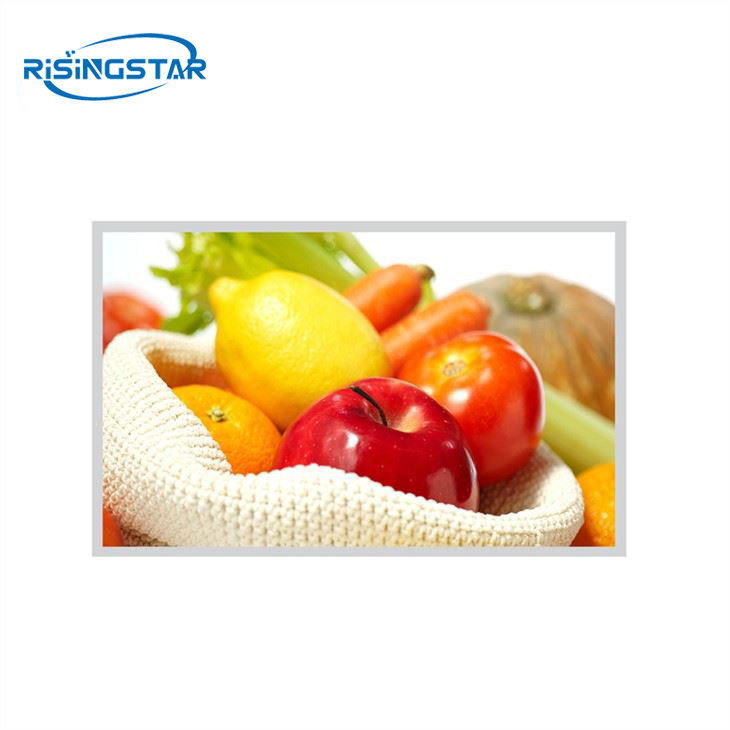

12.1 Inch 1000 Nits TFT LCD Panel
12.1 Inch 1000 Nits TFT LCD Panel
12.1 Inch 1000 Nits TFT LCD Panel

12.1 Inch 1000 Nits TFT LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisingSTAR

Supply Ability & Additional Information

Productivity150K

Place of OriginSHEN ZHEN

CertificateCE/ROSH/FCC/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

Ultra-thin LCD Panel, the brightness reaches 1000nit, the picture is still clear in direct sunlight, the ideal solution for outdoor and window facing, this sunlight readable Lcd Module can be customized brightness: 500-1000nit.

Bright-Brilliant-High-Brightness-Monitor-Signage-ID_1559693827636_01

12.1 inch Digital Display LCD screen with High Brightness LED Backlight Module

Backlight Module Structure: all aluminum structure, light and thin, good appearance, effective heat dissipation.

LED Backlight: white LED beads, high brightness, 50K hrs lifespan, perfect brightness uniformity.

Assemble the light strip: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum structure to facilitate heat conduction.

Strip: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum.


12.1 inch Light LCD Module Sunlight Readable Lcd Panel

Ultra slim 21.5 inch lcd module connect the wires and attach 3M reflective film to make the backlight reflect more uniform to the original brand open cell. Enter the 10,000-class clean room and check the light source to ensure that the LED backlight works normally.

Visible-with-Polarized-Sunglasses-High-Brightness-Monitor-Signage_1559693988714_02

Ultra Slim 12.1 inch LCD Module with Place Optical Flims

Slim High Brightness Lcd module places optical flims: diffusion plate, diffusion film, gloss enhancement film,etc to improve the brightness and uniformity of the backlight.


brand RisingStar Model name G121EAN01.2
size 12.1" Screen type a-Si TFT-LCD,LCD module
resolution 1280(RGB)×800 (WXGA) 124PPI Pixel configuration RGB vertical bar
Display size 261.12 × 163.2 (H×V) mm Appearance of size 278×184×9.94(H×V×D) mm
Visual size 264.22 × 168.12 (H×V) mm Surface treatment Mist side,Hard coating (3H)
Brightness(cd/m²) 1000 cd/m² (Typ.) contrast 1000 : 1 (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Apply to Industrial and outdoor highlighting
Signal system 30 pins   LVDS (1 ch, 6/8-bit) , terminal

Maximum rated Storage temperature: -30 ~ 85 °C    Working temperature: -30 ~ 85 °C


Q:who are we?

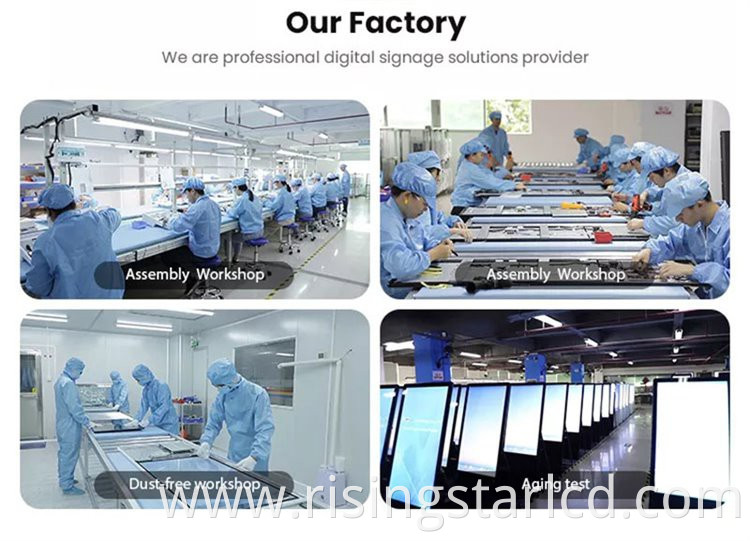

A:R-star originated from Shenzhen, China,  We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, There are more than 100 employees, including 20 experienced engineers. The company has passed ISO9001/ISO14001/CCC/CE/FCC/ROHS/UL and other certifications, has a high-level R&D platform, and has become an ODM/OEM partner of many world-class companies.Our markets cover Asia, North America, Africa, Middle East, Europe, Central and South America and Oceania.We believe that if you give us a chance to serve, we will be your trusted supplier in China.


Q:What are our advantages?

A:Low price high quality products, timely tracking information.


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.
