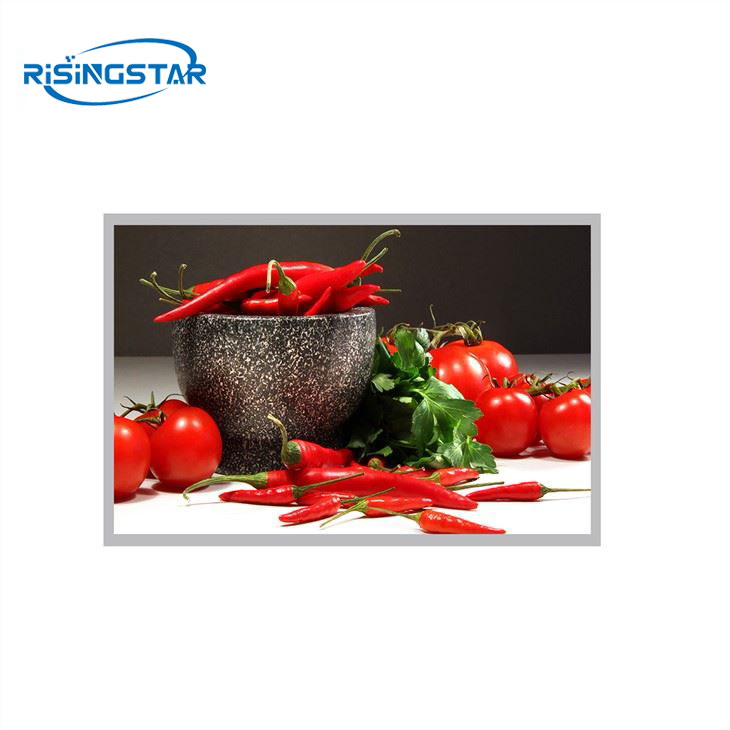

19 Inch 600~1000nits Small LCD Panel
| Panel Brand | RisingStar Display | Panel Model | RS190ENT-NE10 |
| Panel Size | 19 inch | Panel Type | a-Si TFT-LCD,Lcd Module |
| resolution ratio | 1280(RGB)×1024 SXGA 86PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(W)×301.056(H) mm | Operating Mode | TN, Normally White, Transmissive |
| Bezel Area | 380.0(H)×305.08(V) mm | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 600-1000nit or customized | Backlight type | WLED [11S4P] , 30K hours , W/O Driver |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Surface treatment | Antiglare, Hard coating (3H) |
| work environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | | |
Ultra-thin LCD panel, the brightness reaches 1000nit, the picture is still clear in direct sunlight, the ideal solution for outdoor and window facing, this sunlight readable LCD module can be customized brightness: 600-1000nits.
19 inch LCD screen with High Brightness LED Backlight Module
1、Backlight Module Structure: all aluminum structure, light and thin, good appearance, effective heat dissipation.
2、LED Backlight: white LED beads, high brightness, 50K hrs lifespan, perfect brightness uniformity.
3、Assemble the light strip: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum structure to facilitate heat conduction.
4、Article lamp: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum
