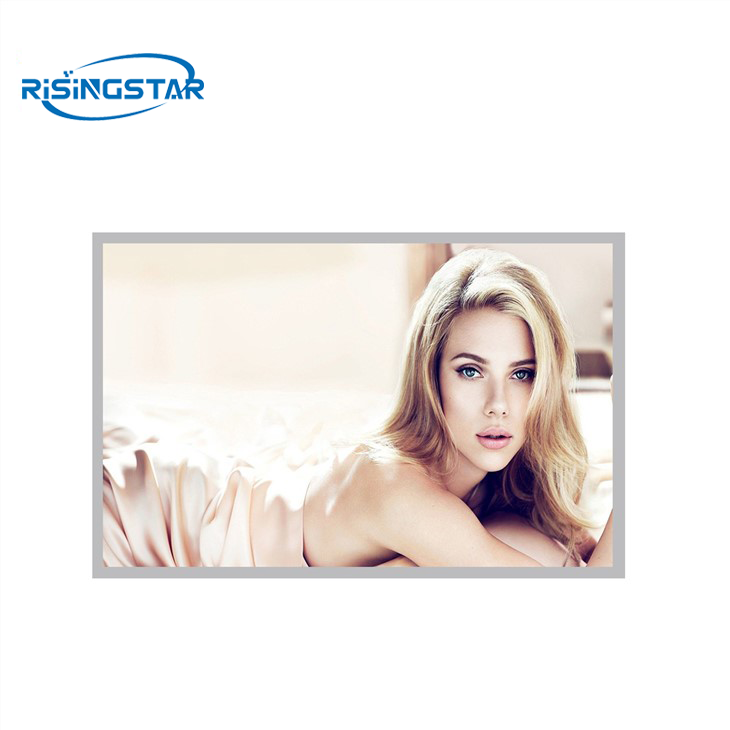

21.5 Inch Outdoor Sunlight Readable LCD Panel
21.5 Inch Outdoor Sunlight Readable LCD Panel
21.5 Inch Outdoor Sunlight Readable LCD Panel

21.5 Inch Outdoor Sunlight Readable LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisinglcd

Supply Ability & Additional Information

Productivity150KK

Place of OriginSHEN ZHEN

CertificateCE/ROSH/UL/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


Panel BrandBOEPanel ModelMT220WPM-N10
Panel Size22.0"Panel Typea-Si TFT-LCD , LCM
Resolution1680(RGB)×1050, WSXGA+, 90PPIPixel FormatRGB Vertical Stripe
Display Area473.76(W)×296.1(H) mmBezel Opening477.7(W)×300.1(H) mm
Outline Size493.7(W)×320.1(H) ×10.7(D) mmSurfaceAntiglare (Haze 25%), Hard coating(3H)
Brightness1000nit or customizedContrast Ratio1000:1 (Typ.) (TM)
Viewing Angle85/85/80/80 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
Display Colors16.7M   72% NTSCResponse Time1.5/3.5 (Typ.)(Tr/Td)
Frequency60HzLamp Type3 strings WLED , 40K hours , Without Driver
Weight1.83Kgs (Typ.)Touch ScreenWithout
Signal InterfaceLVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage5.0V (Typ.)
EnvironmentOperating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C


Ultra-thin LCD Panel, the brightness reaches 1000nit, the picture is still clear in direct sunlight, the ideal solution for outdoor and window facing, this sunlight readable Lcd Module can be customized brightness: 600-1000nit.

Bright-Brilliant-High-Brightness-Monitor-Signage-ID_1559693827636_03

21.5 inch Digital Display LCD screen with High Brightness LED Backlight Module


1、Backlight Module Structure: all aluminum structure, light and thin, good appearance, effective heat dissipation.

2、LED Backlight: white LED beads, high brightness, 50K hrs lifespan, perfect brightness uniformity.

3、Assemble the light strip: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum structure to facilitate heat conduction.

4、Article lamp: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum


21.5 inch Light LCD Module Sunlight Readable Lcd Panel

Ultra slim 21.5 inch lcd module connect the wires and attach 3M reflective film to make the backlight reflect more uniform to the original brand open cell. Enter the 10,000-class clean room and check the light source to ensure that the LED backlight works normally.


Ultra Slim 21.5 inch LCD Module with Place Optical Flims


Slim High Brightness Lcd module places optical flims: diffusion plate, diffusion film, gloss enhancement film,etc to improve the brightness and uniformity of the backlight.


Slim High Hrightness LCD Module with RisingStar/RisingStar/RisingStar/BOE,etc Original Open Cell


This slim 21.5 inch lcd module assemble RisingStar/RisingStar/RisingStar/BOE,etc original open cell (normal grade and industrial grade high tni110℃)


Ultra Slim 21.5 inch LCD Module with T-con Board


21.5 inch light lcd module assembles T-con board, LED driver boards, constant DC12V power supply.


21.5 inch High Hrightness Module with Brightness Test


This slim high brightness 21.5 inch lcd module, have passed brightness test, color temperature brightness test, Topcon BM-7 color brightness tester.

lcd display





Hot Tags: 21.5 inch outdoor sunlight readable lcd panel, China, factory, cheap, price, customized, quotation, window facing LCD, 65inch Lcd Display screen, Outdoor TV lcd display, bright lcd panel, 2000nits high bright lcd display, tft lcd panel, digital screen 55 inches

10.1 inch 1200nit Outdoor Touch Lcd Panel

MT220WPM-N10 22.0" 1000nit Lcd Tv Panel
