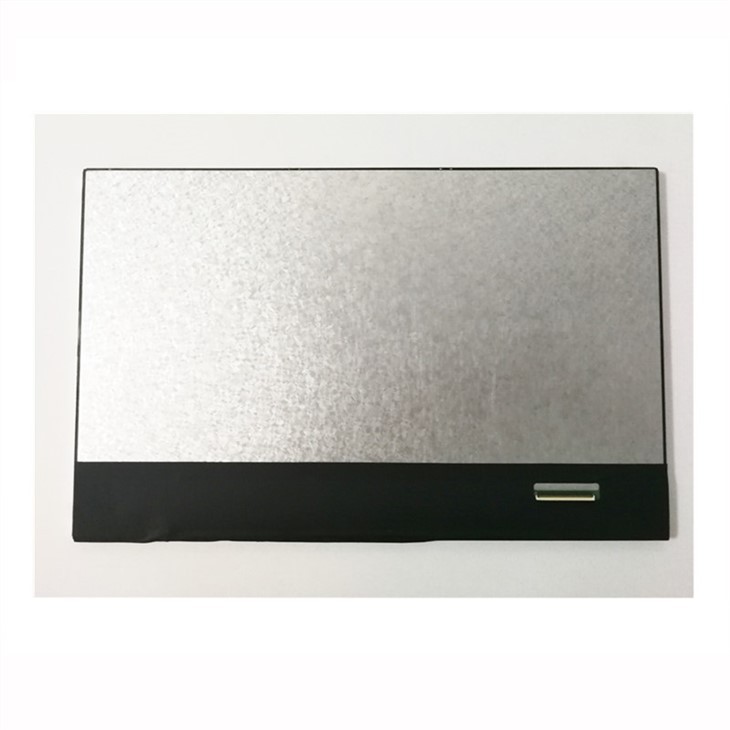

10.1 inch 1200nit Outdoor Touch Lcd Panel
10.1 inch 1200nit Outdoor Touch Lcd Panel
10.1 inch 1200nit Outdoor Touch Lcd Panel
10.1 inch 1200nit Outdoor Touch Lcd Panel
10.1 inch 1200nit Outdoor Touch Lcd Panel
10.1 inch 1200nit Outdoor Touch Lcd Panel

10.1 inch 1200nit Outdoor Touch Lcd Panel

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction



Panel Size 10.1" Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×800   (WXGA)  149PPI Pixel Format RGB Vertical Stripe
Display Area 216.96 × 135.6 (H×V) Surface Hard coating, Reflection 1.5% (Max.)
Outline Size 229.46 × 149.2 × 4.96 (H×V×D) Contrast Ratio 1300 : 1 (Typ.) (TM)
Brightness 400nit or customized Display Mode MVA, Normally Black, Transmissive
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Response Time 25 (Typ.)(Tr+Td) ms
Display Colors 262K   45% NTSC Lamp Type WLED , 15K hours , With LED Driver
Weight 187g (Max.) Frequency 60Hz

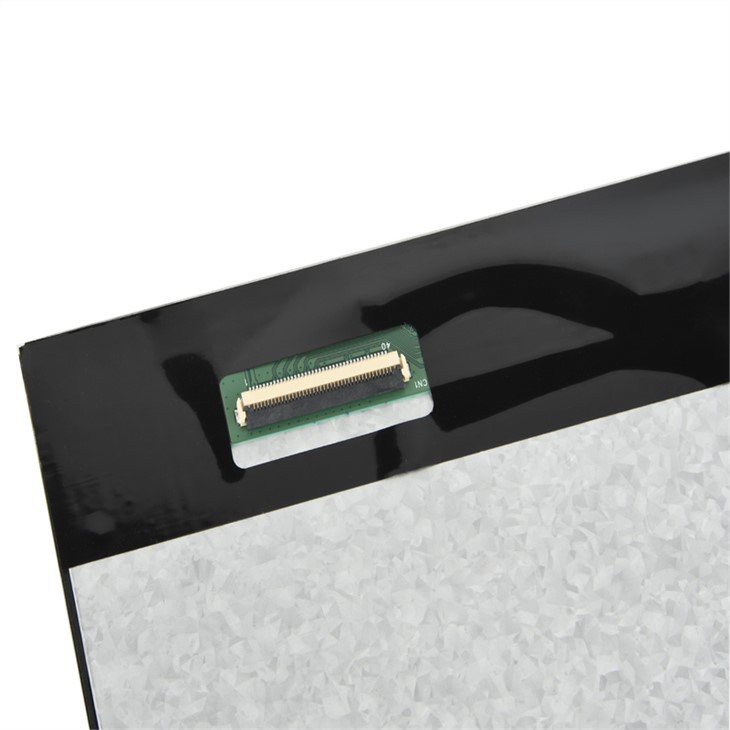

Signal Interface LVDS (1 ch, 6-bit) , 40 pins Connector Input Voltage 3.3V (Typ.)
Environment Storage Temp.: -30 ~ 70 °C    Operating Temp.: -20 ~ 60 °C

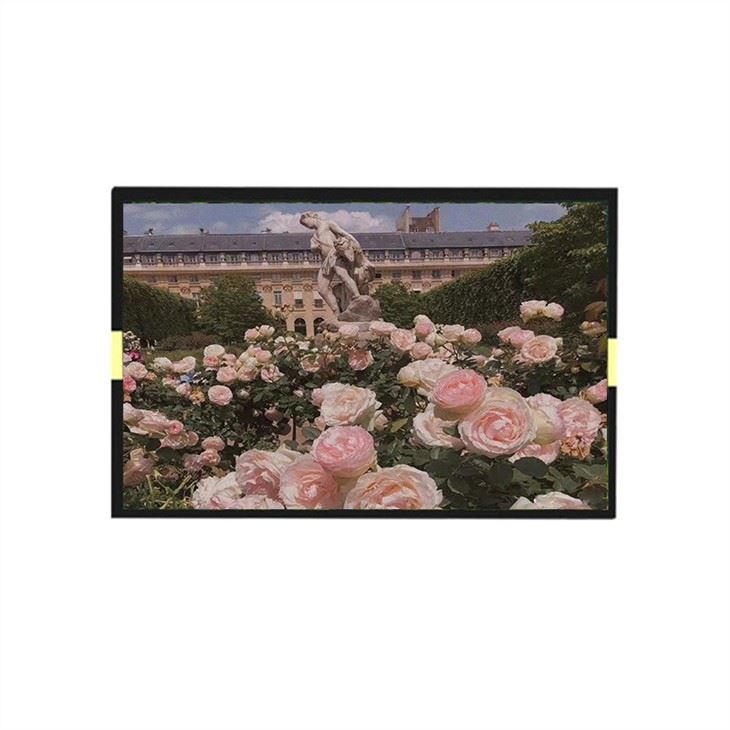

10.1 inch 1200 nit touch LCD screen. The high brightness makes it ideal for outdoor applications, in direct sunlight, with a bright field of view


10.1 the touch lcd screen series products have superior readability in sunlight. Through our specialized technology, we were able to increase the brightness to 1200 nit and the contrast ratio to 800:1, and its advanced anti-reflective coating further enhances readability in sunlight.The entire shell is constructed of aluminum, which is sturdy and thin.

5

The 10.1" LCD touch lcd screen is ideal for industrial, in-vehicle computing applications or any other application that requires a small, high-brightness lcd screen, including but not limited to: Transportation - Marine, Aviation, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics , In-Vehicle Computing, Public Transportation, Cargo System Integration - Machinery Control, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, IoT, Healthcare, Logistics, Inventory Management, Oil & Gas/Utilities, Broadcast Stations, Mobile Production Vehicles, etc.


Features

1200nit Sunlight Readable with 50000 hours Long Life LED Backlight

Wide Viewing Angle IPS (In-Plane Switching) LCD Panel

Automatic Backlight Adjustment through Built-in Ambient Light Sensor

1280*800 Resolution, 16:9 Aspect Ratio

High Quality Image and Video Signal Processor

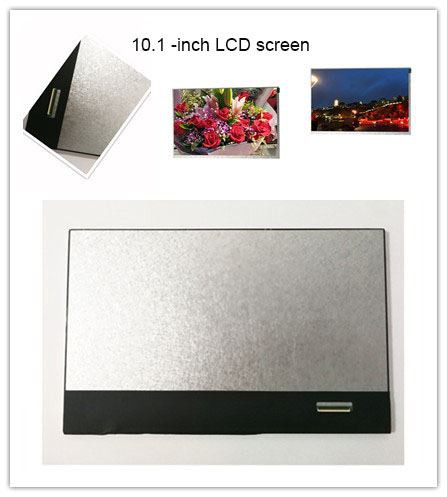

10.1 lcd screen
