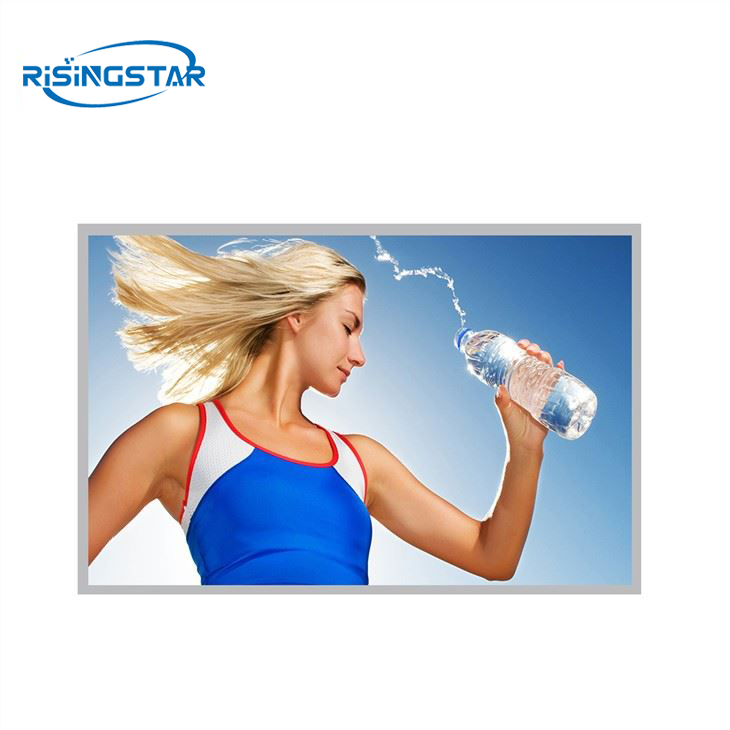

13.3 Inch 1000 Nits High Brightness LCD Panel
13.3 Inch 1000 Nits High Brightness LCD Panel
13.3 Inch 1000 Nits High Brightness LCD Panel

13.3 Inch 1000 Nits High Brightness LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisingSTAR

Supply Ability & Additional Information

Productivity1200K

Place of OriginSHEN

CertificateCE/ROSH/UL/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


Panel Brand RisingStar Panel Model G133HAN01.1
Panel Size 13.3" Panel Type a-Si TFT-LCD , LCM
Resolution 1920(RGB)×1080  [FHD]  166PPI Pixel Format RGB Vertical Stripe
Display Area 293.472(H)×165.078(V) mm Bezel Opening 295.07(H)×166.68(V) mm
Outline Size 309.7(H)×184.1(V) ×10.1(D) mm Surface Antiglare
Brightness 400nit or customized Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 Display Mode AHVA, Normally Black, Transmissive
Display Colors 16.7M   90% NTSC Response Time 25(Tr/Td)
Frequency 60Hz Lamp Type WLED , 50K hours , With LED Driver
Weight 500g (Max.) Input Voltage 3.3V (Typ.)
Signal Interface LVDS (2 ch, 8-bit) 30 pins Connector
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C


13.3" 1000nit Outdoor Lcd panel


13.3" High Brightness Lcd panel with operating temperature -20 ~ 70°C and storage temperature -20 ~ 70°C, suitable for industrial, medical imaging, gaming, etc. The display resolution is 1920(RGB)×1080 (FHD) with 16:9 aspect ratio (W:H). The backlight is a WLED illuminated side entry light source with 50K hours of light source life, including LED driver.

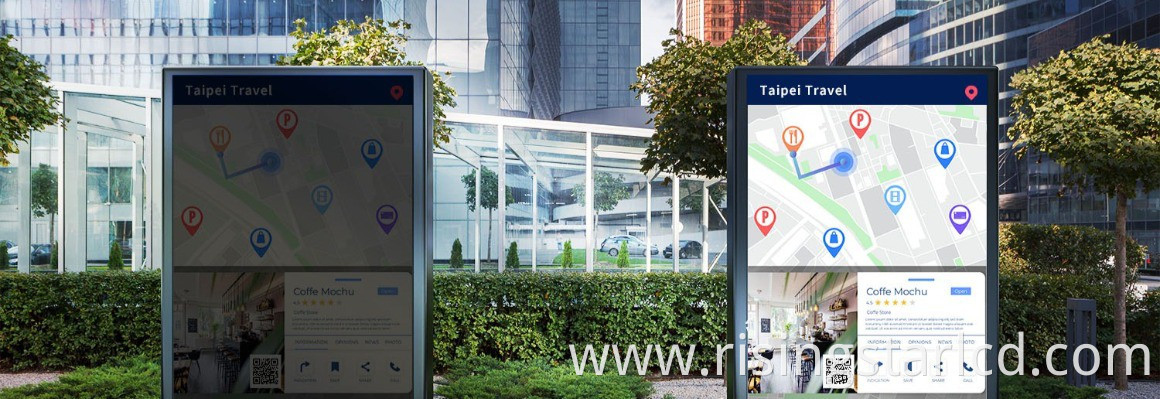

If you need a screen for outdoor use during the day, then a sunlight readable panel is essential. Regular screen in daylight usually are invisible, as extreme light fades the image and creates glare on the screen. With a sunlight-readable screen, you can be sure of any lighting condition and outdoor environment for effective use.

sunlight lcd display

Sunlight readable monitor technology

1, LED backlight: LED backlight, high brightness, 50K hours life, perfect brightness uniformity


2、Optical bonding: sunlight readable LCD screen build optical bonding glass can effectively reduce glare, reflection, ensure the visibility in daylight visibility. Optically bonded glass can increase sunlight readability by up to 400%, as well as provide increased durability and reduced fogging/condensation.


3, Anti-reflection and anti-glare surface treatment: Anti-reflection surface treatment can be applied to daylight screen to prevent reflection and glare.


4, UV protection film and infrared heat protection: UV and infrared heat protection can damage the monitor or cause the monitor to overheat. UV Protection film protects the sunlight readable monitor from UV damage, while infrared heat rejection prevents the monitor from overheating.


Sunlight Readable Display and Monitoring Range

Risinglcd is an industry-leading manufacturer of commercial and military-grade displays for daylighting conditions and outdoor environments. displays for daylighting conditions and outdoor environments. We offer a wide variety of models for different commercial, industrial and marine uses.


Benefits of Daylight Visible Screens

High brightness displays ensure visibility in all outdoor and indoor lighting conditions, increasing color saturation, contrast and brightness in any environment. contrast and brightness in any environment.


Applications for High Brightness Sunlight Readable Displays

High brightness LCD displays can be used in any outdoor application. They are typically used for military and marine applications, in addition to these sunlight-visible screens can also be used in industrial and commercial applications such as mining, shipping and construction, as well as warehouses, energy sectors, automotive restaurants and other commercial environments.


Risinglcd is a professional High Brightness Lcd Display manufacturer in China, we are committed to providing high performance displays at the forefront of display technology.
