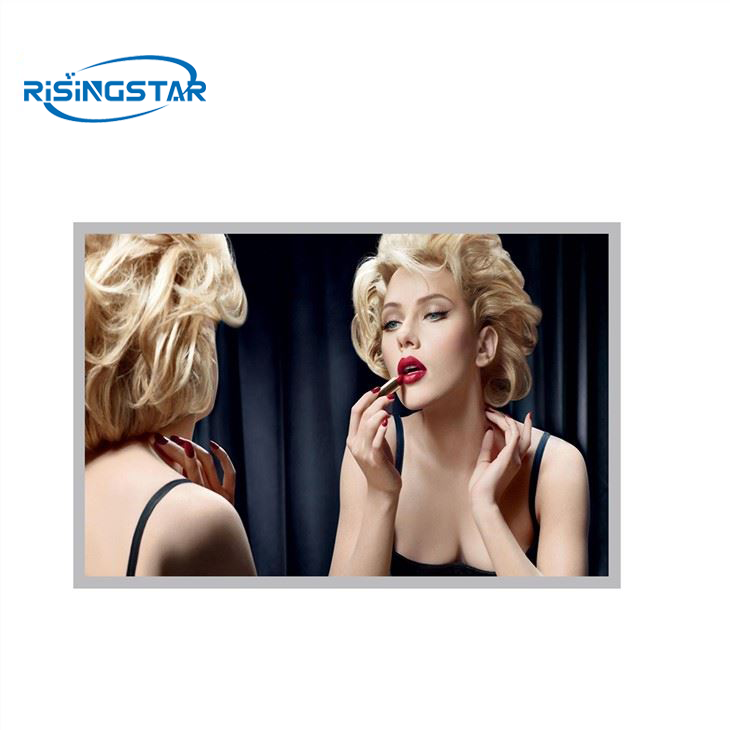

15"1000nit Outdoor Display Panel

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction
Panel Brand RISINGSTAR Panel Model RS150ENT-NE10
Panel Size 15" Panel Type a-Si TFT-LCD , LCM
Resolution 1024(RGB)×768  [XGA]  85PPI Pixel Format RGB Vertical Stripe
Display Area 304.128(H)×228.096(V) mm Surface Antiglare (Haze 25%), Hard coating (3H)
Outline Size 326.5(H)×253.5(V) ×10(D) mm Contrast Ratio 1000:1 (Typ.) (TM)
Brightness 350nit or customized Display Mode ADS, Normally Black, Transmissive
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Response Time 30(Tr/Td)
Display Colors 16.7M   72% NTSC Lamp Type WLED  [12S4P] , 50K hours , With LED Driver
Frequency 60Hz Input Voltage 3.3V (Typ.)
Weight 930g (Max.) Signal Interface LVDS (1 ch, 8-bit) , 20 pins Connector
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C


1.Branded LCD panels with perfect image quality and wide viewing angles;


2.Built with industrial-grade components for a reliable 24/7 continuously operation;


3.LED backlight, brightness up to 1000 nits;


4.With light sensor for auto-dimming, to save energy and extend backlight life span;


5.Customization solution available
