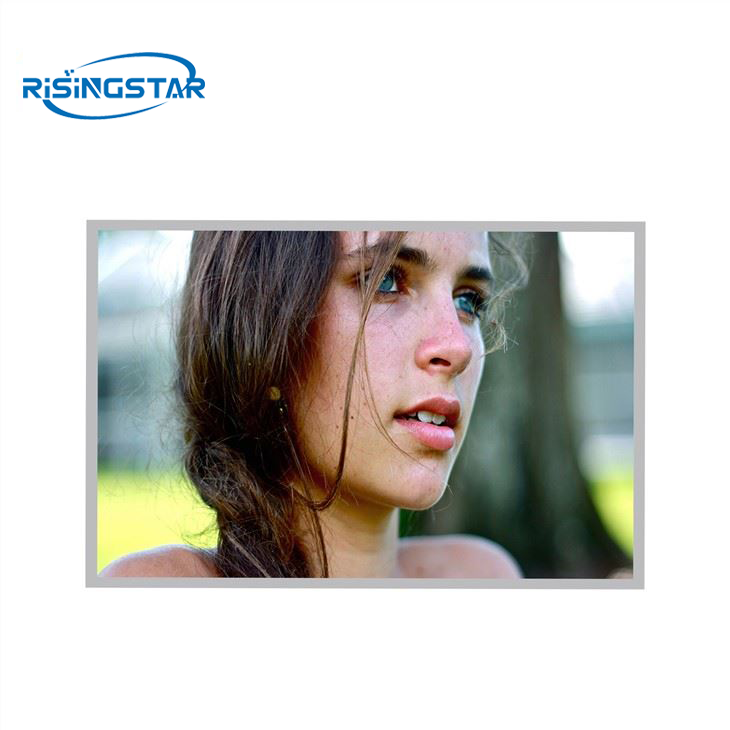

17.3-Inch 1200-Nits Outdoor High Brightness LCD Panel
17.3-Inch 1200-Nits Outdoor High Brightness LCD Panel
17.3-Inch 1200-Nits Outdoor High Brightness LCD Panel

17.3-Inch 1200-Nits Outdoor High Brightness LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisinglcd

Supply Ability & Additional Information

Productivity250K

Place of OriginSHEN ZHEN

CertificateCE/ROSH/UL/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

RISINGSTARPanel ModelRS173ENT-NE10
17.3"Panel Typea-Si TFT-LCD , LCM
1920(RGB)×1080   (FHD)  127PPI Pixel FormatRGB Vertical Stripe
381.888 × 214.812 (H×V)TreatmentGlare (Haze 0%), Hard coating (3H)
403×240×13mm (H×V×D)Contrast Ratio600 : 1 (Typ.) (TM)
1000nit or customizedDisplay ModeTN, Normally White, Transmissive
80/80/60/80 (Typ.)(CR≥10) Response Time37/3 (Typ.)(Tr/Td) ms
16.7M   72% NTSCLamp TypeWLED , 50K hours , With LED Driver
1.08Kgs (Typ.)Frequency60Hz
LVDS (2 ch, 8-bit) , 30 pins ConnectorInput Voltage3.3 V (Typ.)
Storage Temp.: -30 ~ 75 °C    Operating Temp.: 0 ~ 70 °C

Risingstar industrial display adopts sturdy metal frame, flat panel LCD Panel design, compact and durable, with the advantages of shock resistance, anti-interference, heat dissipation, etc., and meets the needs of embedded or external installation. Widely used in industrial display, medical display, commercial Lcd Display, financial equipment, self-service terminals, etc.


Industrial high-definition LCD display, 1920x1080 full HD resolution, clear and natural images; at the same time, it has low power consumption, long-term running ability, and can adapt to almost all harsh environments.


Applications

Mainly used in closed-circuit monitoring systems, video, PC operating systems, vehicle navigation systems and other supporting displays, and can also be used in industrial automation, medical machinery and equipment, electric power, petrochemical, marine and military navigation systems. ATM and instrument display systems.

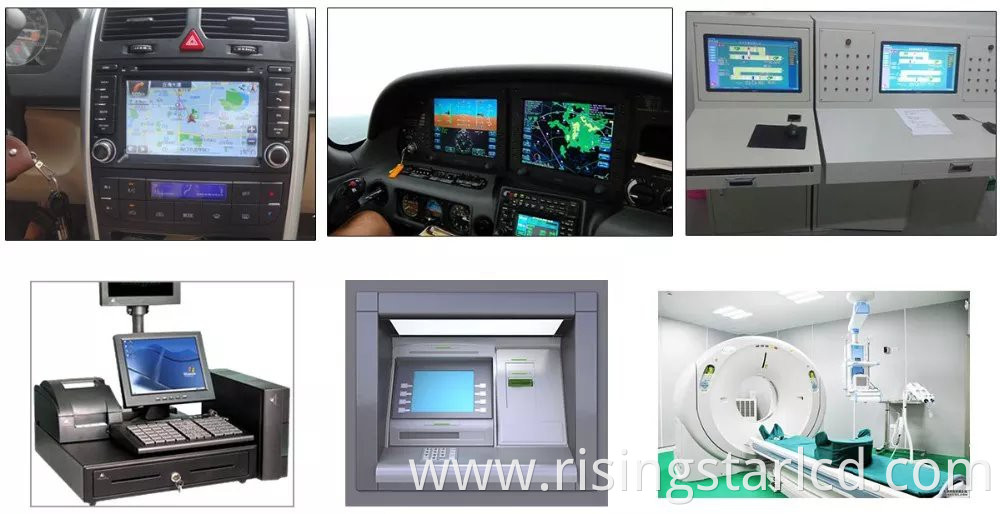

17 inch panel Applications


Engineered Solutions

With the development of display technology, Risingstar continues to develop solutions to meet the diverse needs of the display market. Whether your application is a terminal, CRT replacement, HMI, POS, public information display or Digital Signage, this is an easy all-in-one solution for you. Easy to integrate, we combine performance and quality with versatile open frame chassis mountable products. Choose from a variety of optional touchscreens, protective glass, films or privacy shields. Risingstar custom designs and manufactures for OEMs, offering custom enclosures, special power requirements and custom warranty and service packages.
