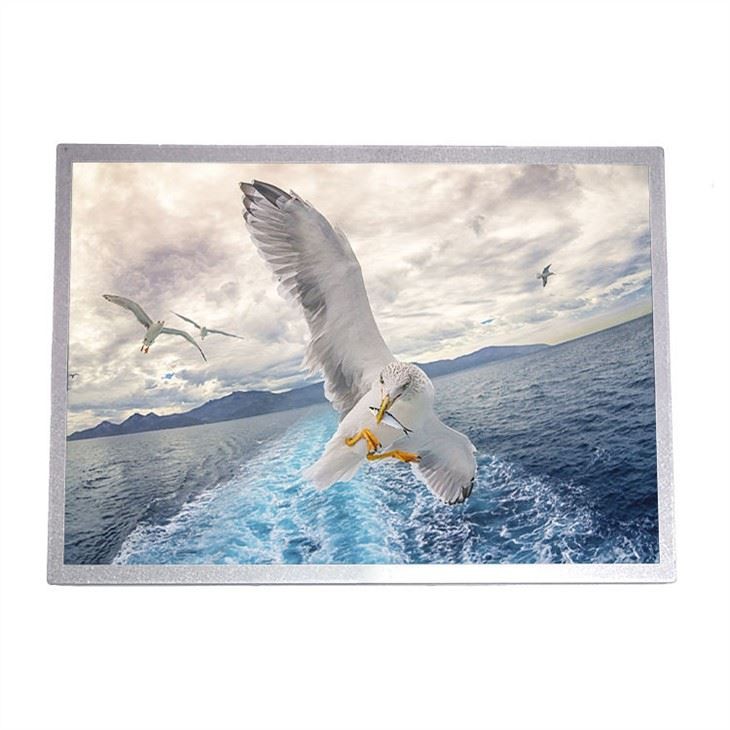

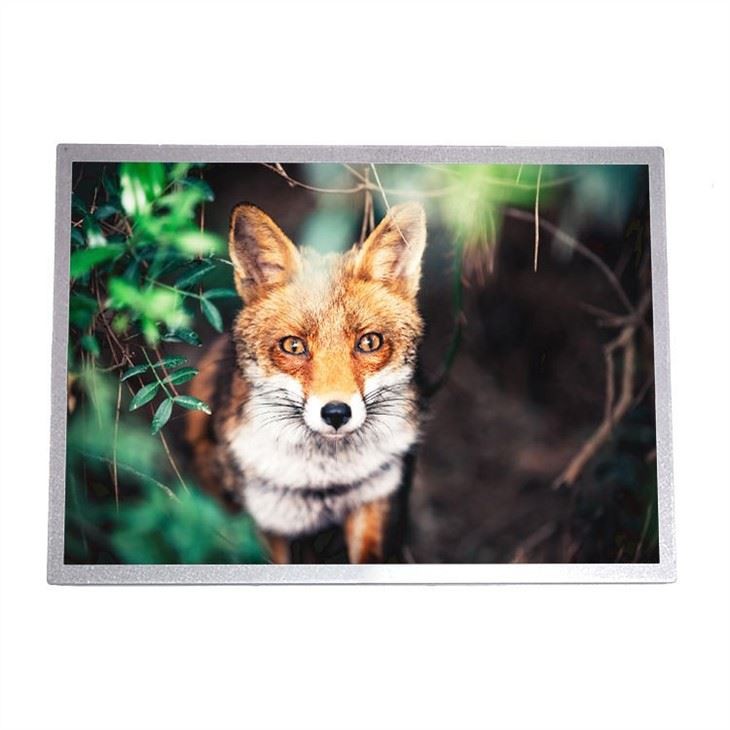

19 Inch Sunlight Readable Touch Screen
19 Inch Sunlight Readable Touch Screen
19 Inch Sunlight Readable Touch Screen
19 Inch Sunlight Readable Touch Screen
19 Inch Sunlight Readable Touch Screen
19 Inch Sunlight Readable Touch Screen

19 Inch Sunlight Readable Touch Screen

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisingSTAR

Supply Ability & Additional Information

Productivity180K

Place of OriginSHENZHEN

CertificateCE/ROSH/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

Panel Brand RISINGSTAR Panel Model RS190ETN-GE10
Panel Size 19" Panel Type a-Si TFT-LCD , LCM
Resolution 1280(RGB)×1024  [SXGA]  86PPI Pixel Format RGB Vertical Stripe
Display Area 376.32(H)×301.056(V)mm Surface Antiglare, Hard coating (3H)
Outline Size 396(H)×324(V)×11.7(D)mm Contrast Ratio 1000 : 1 (Typ.) (TM)
Brightness 1000nit or customized Display Mode TN, Normally White, Transmissive
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Response Time 3/7 (Typ.)(Tr/Td)
Display Colors 16.7M   72% NTSC Lamp Type WLED[12S4P],30K hours , W/O Driver
Weight 1.80Kgs Frequency 60Hz
Signal Interface LVDS (2 ch, 8-bit) 30 pins Connector Input Voltage 5.0V (Typ.)
Environment Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C


19-inch sunlight readable Lcd Display is powered by a powerful LED backlight array with a brightness of 1000cd/m2. This display is ideal for outdoor environments, or applications with high ambient light conditions such as mobile, marine or Digital Signage. By adopting the latest LED backlight technology, it not only helps to increase the life expectancy of the product, but also helps to minimize power consumption levels, which in turn helps to generate heat, which was previously a high wattage CCFL backlight model. difficult to achieve.


19" sunlight readable, high brightness (1,000 nits)

RS190ETN-GE10 adopts an 19-inch 1920x1080 full HD panel,  a contrast ratio of 1000:1, and supports HDMI, DVID, and VGA input. Rugged metal housing for 24/7 continuous operation

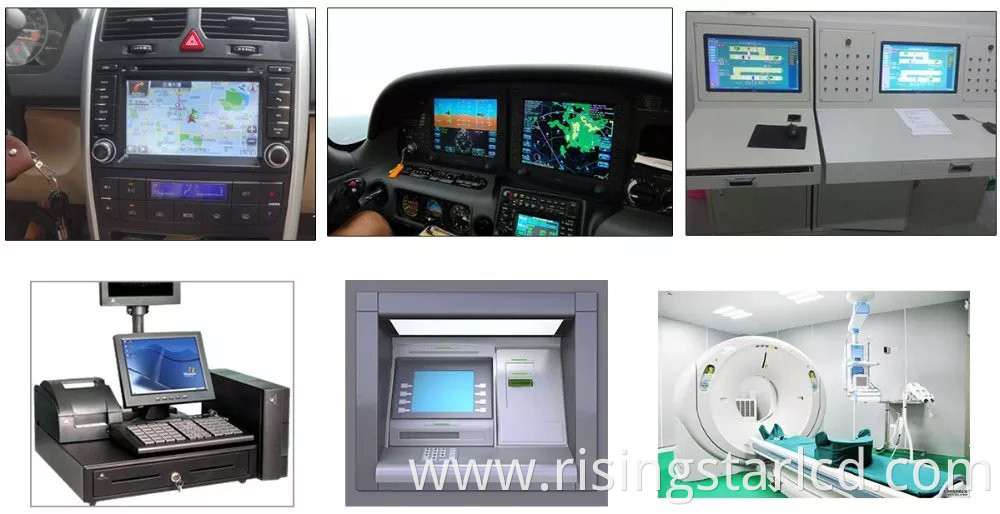

Applications:inspection/supervision of factory production lines, educational institutions, exhibitions and events, showrooms, video conferencing, surveillance, digital signage or as an OEM part integrated into another product .


Features


1. Highlight

In direct sunlight, it remains bright and clear, providing an excellent picture that grabs the attention of potential clients.


2. Wide temperature (-30°C~85°C)

High and low temperature resistance, using special high temperature liquid crystal, the highest temperature can reach 110 degrees, which is the highest level in the industry, which can prevent the phenomenon of black spots on the screen in high temperature environment.


3. Intelligent brightness adjustment

The display can automatically adjust the brightness according to the environment through the light sensor set inside, increase the brightness of the screen when the environment is bright, and reduce the brightness of the screen when the environment is dark.


4.24/7 continuous and reliable operation


17 inch panel Applications

Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.


Q:how can we guarantee quality?

A:Always final Inspection before shipment;


Q:What are our advantages?

A:Low price high quality products, timely tracking information.


Q:How long is the warranty?

A:We offer one year warranty from the date of delivery.


Q:Are you trading company or manufacturer ?

A: We are factory.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shipment.
