1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen
1500 Nits Outdoor Lcd Screen

1500 Nits Outdoor Lcd Screen

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

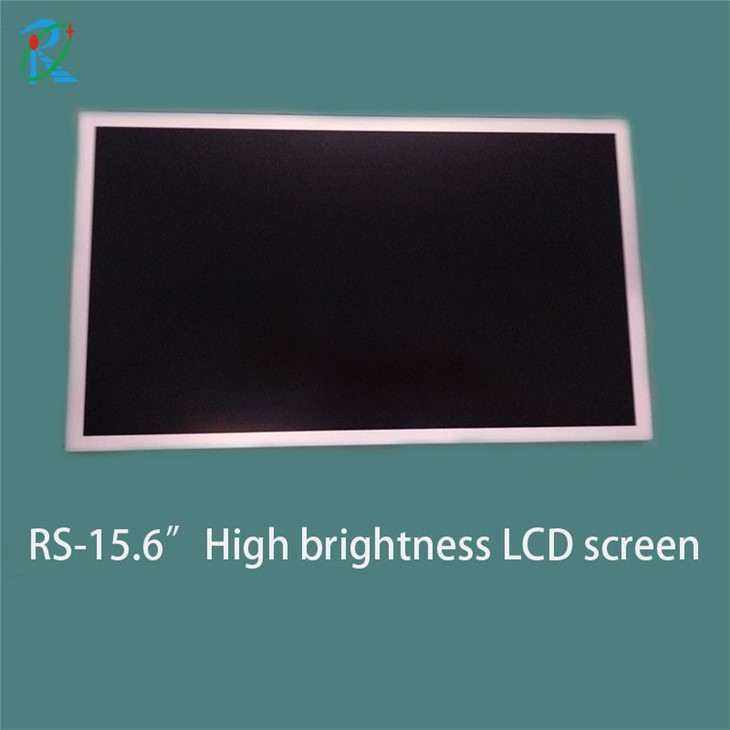

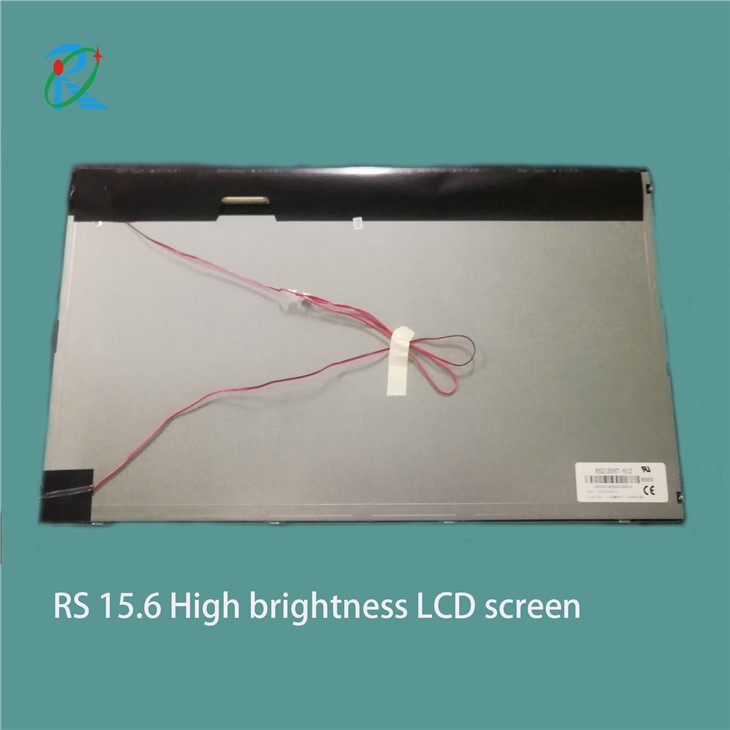

        15.6 inch highlight brightness LCD screen,Original design, Stability highlight  ,Full size design,New original package display module structure and installation method thereof,High flexibility, excellent heat dissipation and convenient maintenance.

        Shenzhen RisingStar Outdoor Highlight LCD Technology Co., uses a dedicated system for LED backlight, which is not only more energy efficient than traditional CCFL backlight, it is also quite bright.

Shenzhen RisingStar Outdoor Highlight LCD Technology Co., specializes in producing ultra-High Brightness Lcd modules that can be  easily viewed in direct sunlight, such as store windows or outdoor cabinets.

         high resolution

      Bright highlight, uniform brightness, color saturation
      RisingStar Outdoor's advanced color management solution provides more detailed color management options, allowing users to fine-tune colors either automatically or manually;
Side-entry lighting design, brightness 500--1500nits (optional), brightness uniformity can reach more than 90%;The color saturation is high, the picture is clear, and the picture quality is fine.

201905271621407485089

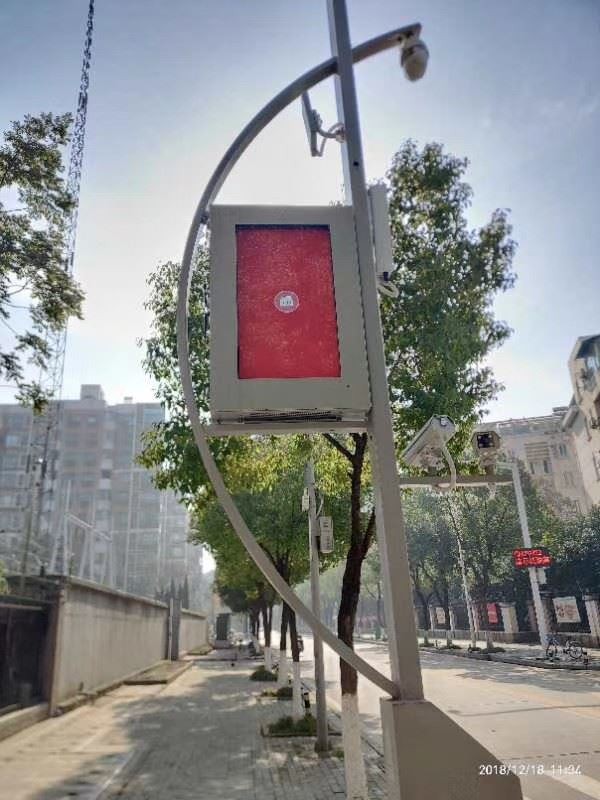

     High-brightness screens are widely used in industrial control displays, electronic class cards, express cabinets, outdoor handheld control panels, car custom screens, tankers, etc. All of these devices are special depend on the high brightness.





Size
15.6inch
Panel item
RS156NET-N10
Panel type
a-Si TFT-LCD
Display mode
 IPS,Normally black,transmissive display
Pixels
1366*768
brightness
1500cd/m2
Constrast Ratio
800:1
Response Time
3.8/1.2ms
View angle
80/80/80/80
View area
347.45*196.8mm(H*V)
Dispaly area
344.16*193.59mm(H*V)
Outline Size
370*217*9.8mm(H*V*D)
Signal Type
LVDS
Working freqyency
60Hz
Working temperature
0- 70゚C
Storage Temperature
-30- +70゚C
Display ratio
16:9
Display color
16.7m
Surface Treatment
Haze  ,Hard coating(3H)
Weight
1.35kgs
