Shenzhen Risingstar Outdoor High Light LCD Co., Lt

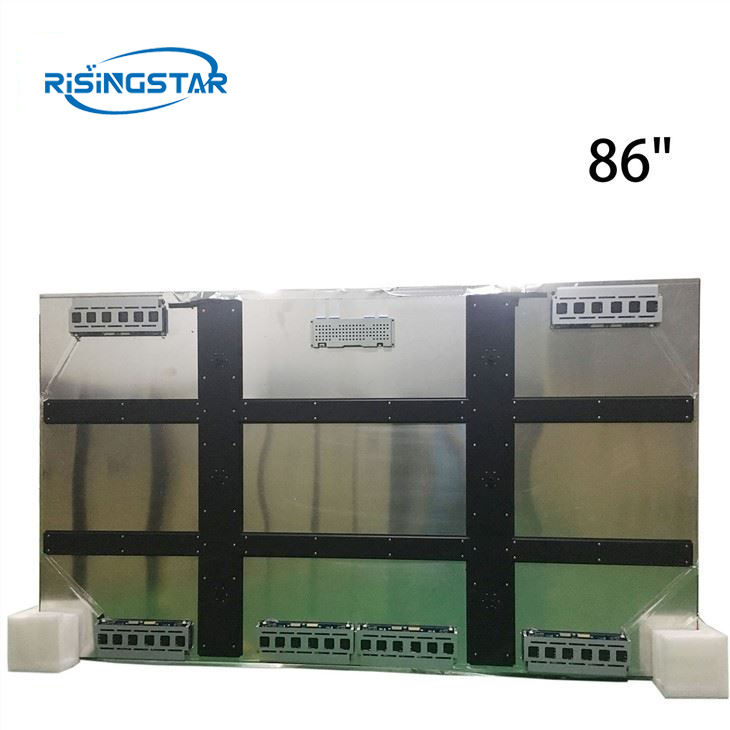

Model No.: RS860EQL-GD40

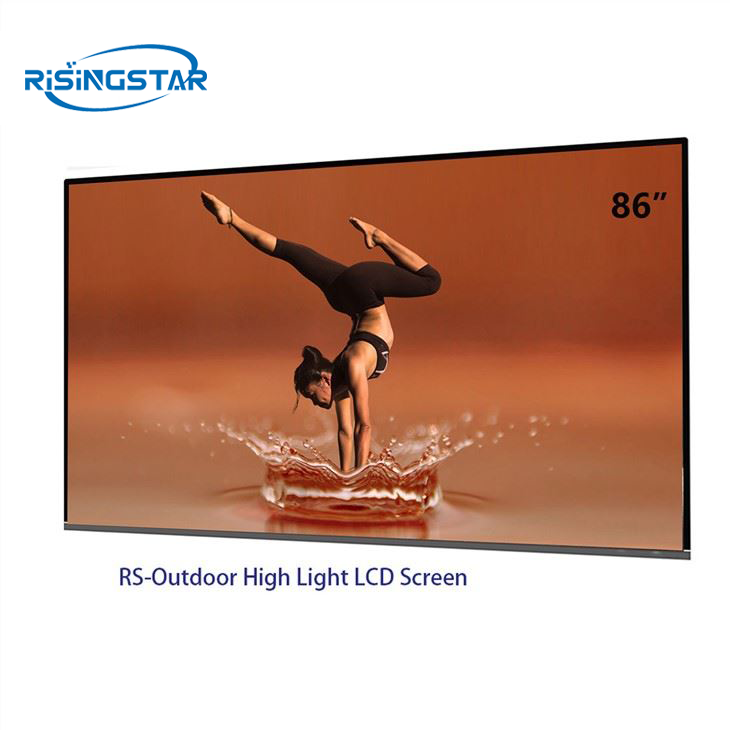

86inch high bright Outdoor Lcd module using RisingStar's original industrial-grade LCD Panel, long-term sunlight without blackening;
1. High and low temperature resistance -30 to 110 degrees;
2. Aluminum alloy structure, better heat dissipation, 3 times better than the conductivity of the electrolytic plate;
3. The backlight supports automatic dimming, knob dimming, PWM dimming;
4. Outdoor special optical materials, with a temperature resistance of 120 degrees Celsius;
5. Direct backlight design, higher reliability.
| Size | 86inch | |||
| Panel item | RS860EQL-GD40 | |||
| Panel type | a-Si TFT-LCD | |||
| Display mode | IPS,Normally black，transmissive display | |||
| Pixels | 3840*2160 | |||
| brightness | 4000cd/m2 | |||
| Constrast Ratio | 1400:1 | |||
| View angle | 89/89/89/89 (Min) | |||
| View area | 1897*1068mm(H*V) | |||
| Dispaly area | 1895.04*1065.96mm(H*V) | |||
| Outline Size | 1930*1111*75.5mm(H*V*D) | |||
| Working freqyency | 60Hz | |||
| Working temperature | -20- +70℃ | |||
| Storage Temperature | -20 - +70℃ | |||
| Display ratio | 16:9 | |||
| Display color | 16.7m/1.7B | |||
| Surface Treatment | Haze 3%,Hard coating(2H) | |||
| Weight | 40kgs | |||
