T645HW02 V0 65
T645HW02 V0 65
T645HW02 V0 65

T645HW02 V0 65"high Brightness Outdoor Lcd Panel

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:EXW,CFR,FOB,CIF

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.T645HW02 V0

BrandRisingStar

Size65-inches

Brightness500-nits

BrandRisingStar

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of OriginShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermEXW,CFR,FOB,CIF

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

T645HW02 V0 is a TFT-LCD liquid crystal module product, the pixels are arranged in RGB vertical stripes, and the surface treatment is Hard coating (3H).


Its operating temperature is 0 ~ 50°C, and its storage temperature is -20 ~ 60°C. Its display resolution is 1920(RGB)×1080(FHD), the aspect ratio is 16:9 (W:H), the display area size is 1428.48(W)×803.52(H) mm, and the net weight of the product is 33.0Kgs (Max .) The backlight uses a CCFL direct light source.

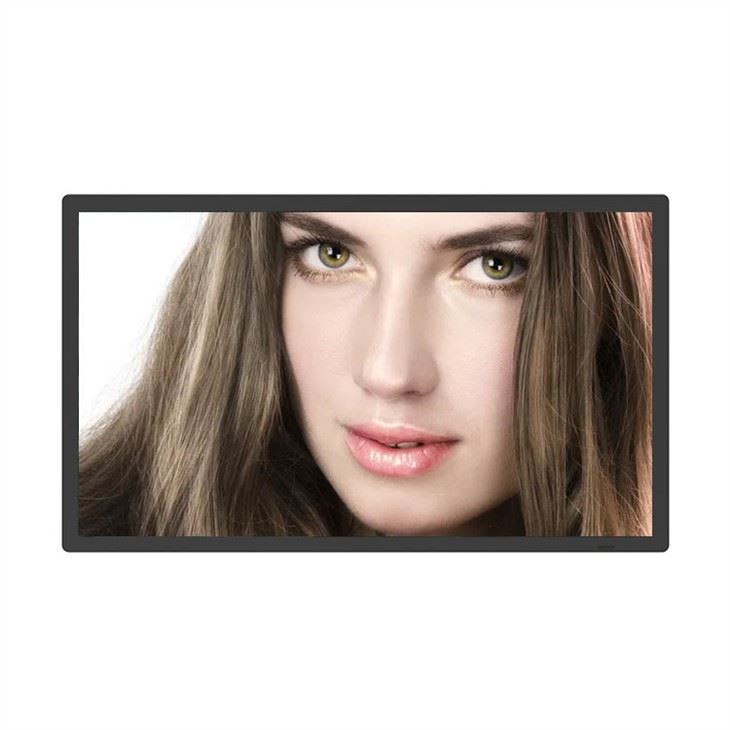

65inch lcd display

Q:How do I get the price?

A:We usually make quotation within 24 hours of receiving your inquiry (except weekends and holidays). If you are in a hurry to ask for an offer, please email us or otherwise contact us so that we can offer you a quotation.


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.


Q: What are your payment term? How long does it take to deliver?

A:We usually accept T/T or L/C. This is negotiable. The delivery time usually depends on the order quantity, small quantities can be delivered in 7~15 days, large quantities can be delivered in 30 days.

lcd panel display screen


brand RisingStar Model name T645HW02 V0
size 65" Screen type a-Si TFT-LCD,Lcd Module
resolution 1920(RGB)×1080   [FHD]  34PPI Pixel configuration RGB vertical bar
Display size 1428.48 × 803.52 mm (H×V) Appearance of size 1508 × 878 mm (H×V)mm
Visual size 1440.6 × 814.6 mm (H×V) Surface treatment Hard coating (3H)
Brightness(cd/m²) 500 cd/m² (Typ.) contrast 5000 : 1 (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)

Signal system LVDS (2 ch, 10-bit),51 pins,terminal

Maximum rated Storage temperature: -20 ~ 60°C    Working temperature: 0 ~ 50°C
