Payment Type:T/T,D/P,Paypal,D/A
Incoterm:FOB,CFR,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Brand: RisingSTAR
Size: 75-inches
Brightness: 4000-nits
Productivity: 280K
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Certificate: CE/ROSH/ISO9001
Payment Type: T/T,D/P,Paypal,D/A
Incoterm: FOB,CFR,CIF,EXW

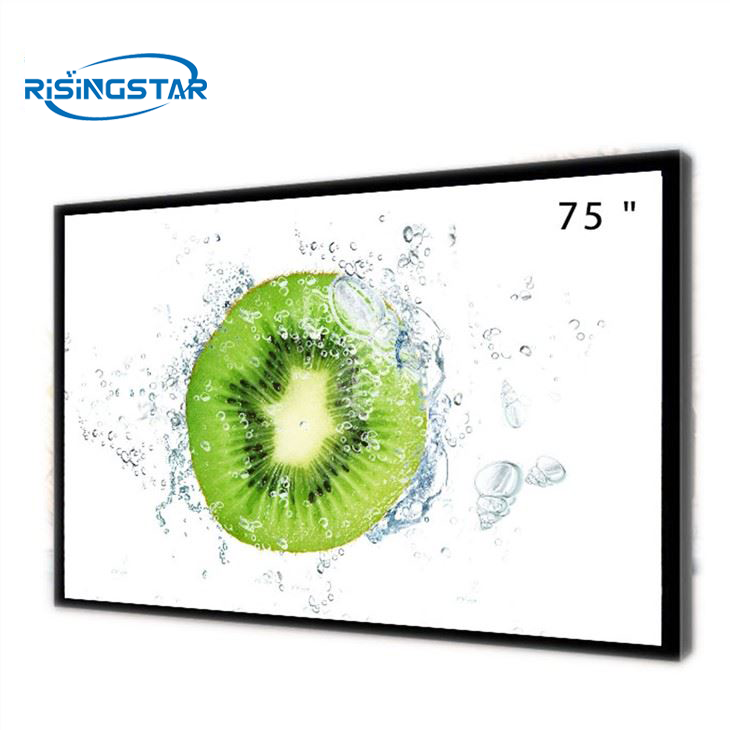

S750DJ3-D02 is a 75-inch liquid crystal module product with TFT-LCD technology, its operating temperature is 0 ~ 50°C, and its storage temperature is -20 ~ 60°C, which is widely used in Digital Signage.
The LCD screen has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 1650.24×928.26 (width×height) mm, and the surface treatment is matte (Haze 1%) and Hard coating (3H).
Q:What is your pre-sale and after-sale service?
A:In terms of pre-sales service, we have a professional sales team and technical team, who are willing to answer your questions within 24 hours.For after-sales service, we can instruct how to install, use and replace damaged modules.
Q:Is there any other size or specification can be choose?
A:If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.
Q:How long is the warranty?
A:Except the damage caused by human factors, one year warranty from the date of delivery. Special circumstances will be notified.
brand | Innolux | Model name | S750DJ3-D02 Rev.C2 |
size | 75 inch | Screen type | a-Si TFT-LCD,Lcd Module |
resolution ratio | 3840(RGB)×2160 [UHD] 59PPI | Pixel configuration | RGB vertical bar |
Display Area | 1650.24 × 928.26 mm (H×V) | Surface treatment | Fog surface(Haze 1%),Hard coating (3H) |
Viewing area | 1654 × 932 mm (H×V) | Contrast Ratio | 5000:1 (Typ.) (TM) |
Brightness(cd/m²) | 500 cd/m²(Typ.)or customized | Outline dimension | 1675.8*953.8*61.4 mm (H×V×D) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | | |
Signal interface | V-by-One 8 lane ,terminal, 51 pins | | |
work environment | Storage temperature: -20 to 60 °C Operation Temperature: 0 to 50 °C | | |
