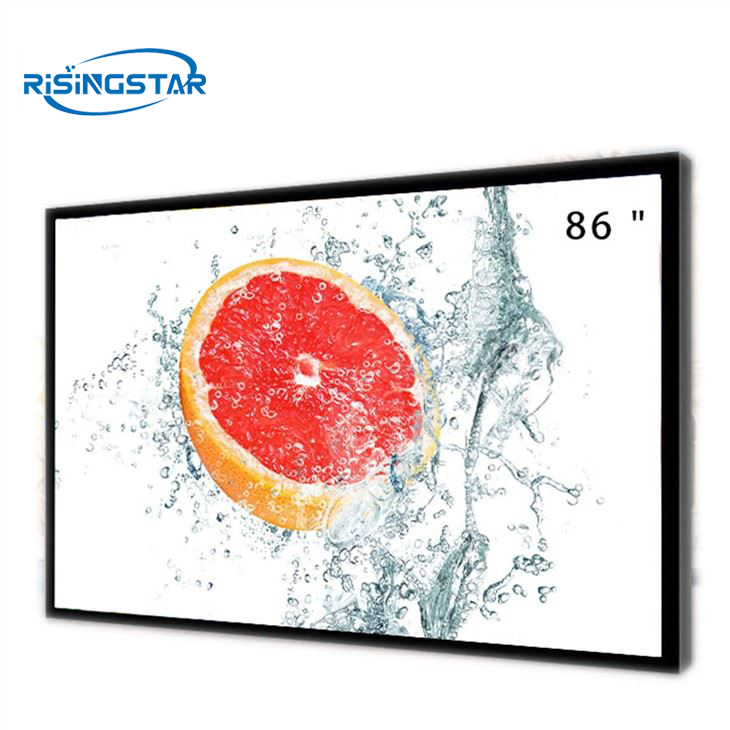

LD860EQD-FLM1 86inch 500nits Outdoor TFT-LCD Display
LD860EQD-FLM1 86inch 500nits Outdoor TFT-LCD Display
LD860EQD-FLM1 86inch 500nits Outdoor TFT-LCD Display

LD860EQD-FLM1 86inch 500nits Outdoor TFT-LCD Display

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Shenzhen

Product Description
Product Attributes

Model No.LD860EQD-FLM1

BrandRisingStar

Size86-inch

Brightness500-nits

BrandRisingStar

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of OriginShenzhen

PortShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

LD860EQD-FLM1 is one of the RisingStar large size module, Risingstar purchase from RisingStar directly and make it become a High Brightness Lcd panel, the basic type of LD860EQD-FLM1 from Risingstar is 500-nits, maximum to 2000-nits, which is much higher than same general type.


In usually we can offerd the products in 15 days after the order, with 1 year guarantee, if you have any questions about this module or any other products, please feel free to contact with us.

ba24366e6aa996a2a0153af9abe724b


brand RisingStar Display Model name LD860EQD-FLM1
size 86 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 3840(RGB)×2160 [UHD]  51PPI Pixel configuration RGB vertical bar

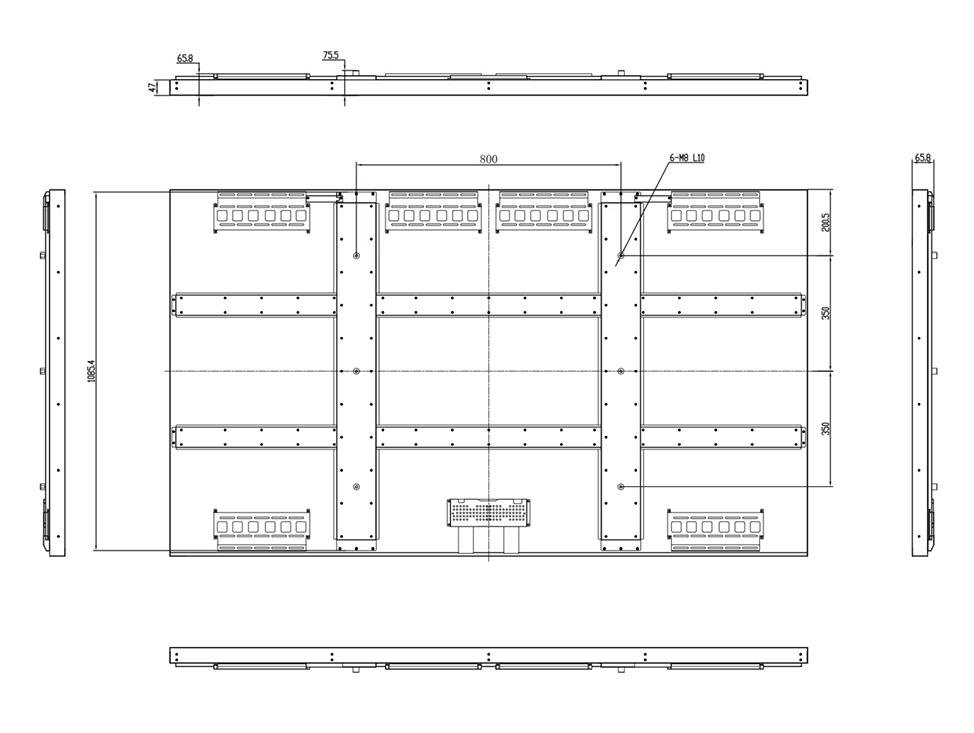

Display Area 1895.04×1065.96 mm(H×V) Surface treatment Fog surface(Haze 28%),Hard coating (3H)
Visual size 1897.6×1068.6 mm(H×V) Contrast Ratio 1200:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 1930×1111(H×V×D)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Backlight type WLED, 50K hours, including LED driver
Signal interface V-by-One 16 lane,erminal,92 pins,

work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0to 50 °C
