LD860DBN-UJA1 500nits 86inch Hot Sell TFT-LCD Panel
LD860DBN-UJA1 500nits 86inch Hot Sell TFT-LCD Panel
LD860DBN-UJA1 500nits 86inch Hot Sell TFT-LCD Panel

LD860DBN-UJA1 500nits 86inch Hot Sell TFT-LCD Panel

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Shenzhen

Product Description
Product Attributes

BrandRisingSTAR

Size86-inches

Brightness500-nits

Supply Ability & Additional Information

Productivity150k

TransportationOcean,Land,Air,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

PortShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

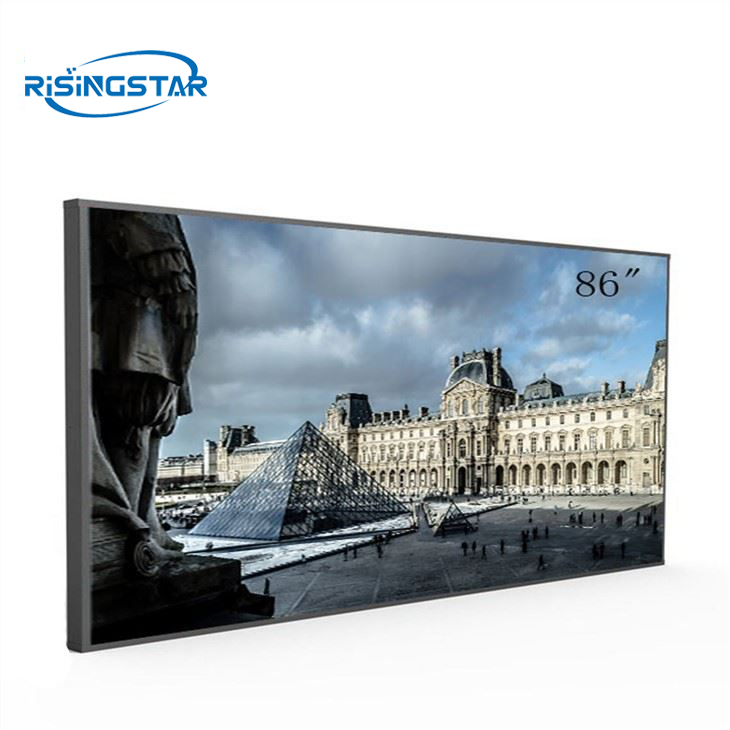

LD860DBN-UJA1, 86-inch liquid crystal module of TFT-LCD technology, it is equipped with WLED backlight, including LED driver backlight driver, no touch.

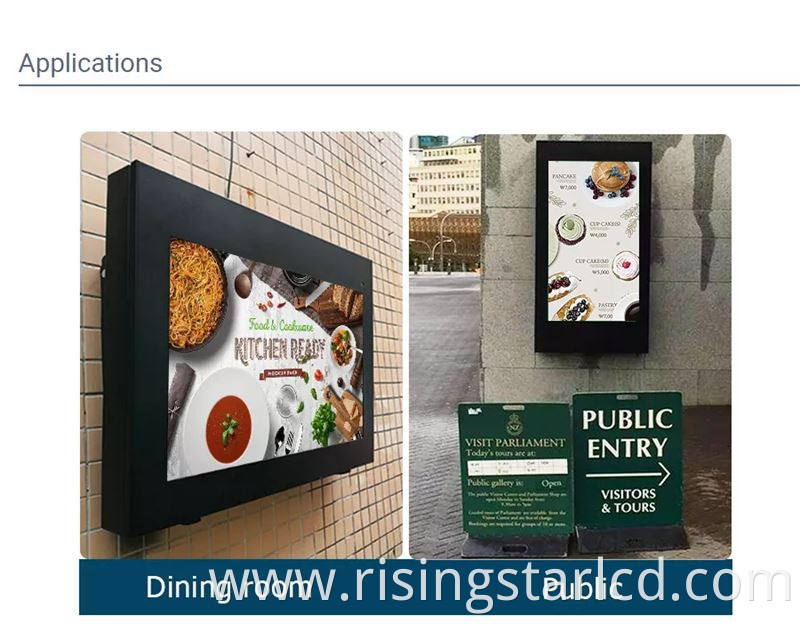

Its operating temperature is 0 ~ 50°C, and its storage temperature is -20 ~ 60°C. The LD860DBN-UJA1 display resolution is 3840(RGB)×600, the aspect ratio is >3:1 (width:height), and the vertical refresh rate Fv is 60Hz. The pixels are arranged in RGB vertical stripes. This LCD screen is suitable for Digital Signage, cutting Bar Screen.

Outdoor lcd module

Q:how can we guarantee quality?

A:Always final Inspection before shipment.


Q:Is there any other size or specification can be choose?

A:If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.

lcd panel display screen

brand RisingStar Display Model name LD860DBN-UJA1
size 86 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 3840(RGB)×600  45PPI Pixel configuration RGB vertical bar
Display Area 2148.48×335.7(H×V)mm Surface treatment Fog surface(Haze 10%),Hard coating (3H)
Visual size 2149.5×336.7(H×V)mm Contrast Ratio 1100:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 2158.3×348.5×82.2(H×V×D)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Backlight type WLED, 50K hours, including LED driver
Signal interface 51 pins V-by-One 8 lane,erminal

work environment Storage temperature: 0 to 50 °C  Operation Temperature: -20to 60 °C
