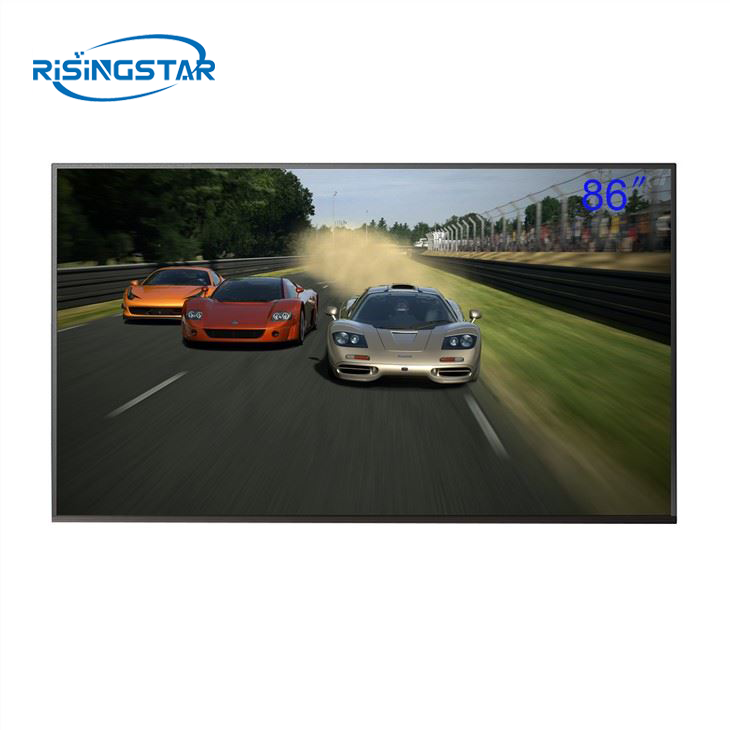

RisingStar Display LD860DBN-UJA2 86inch Overview LCD Module
RisingStar Display LD860DBN-UJA2 86inch Overview LCD Module
RisingStar Display LD860DBN-UJA2 86inch Overview LCD Module

RisingStar Display LD860DBN-UJA2 86inch Overview LCD Module

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Shenzhen

Product Description
Product Attributes

Model No.LD860DBN-UJA2

Size86-inches

Brightness700-nits

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

PortShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

LD860DBN-UJA2, the operating temperature of this module is 0 ~ 50°C, and  the storage temperature is -20 ~ 60°C. The display resolution is 3840 (RGB) × 600, the aspect ratio is >3:1 (width:height), and the pixels are arranged in RGB vertical stripes.

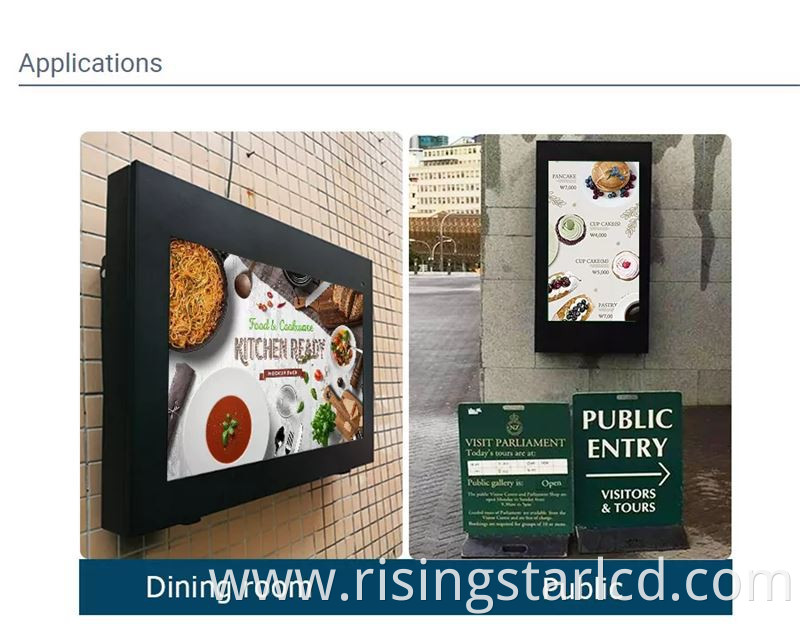

The backlight of this LCD screen uses a direct-type light source with WLED light, and the service life of the light source is 50K hours. Used in Digital Signage, outdoor highlighting, cutting Bar Screen and other products.


Outdoor lcd module

Q:what can you buy from us?

A:semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight  LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end LCD Panel.


Q:What is your pre-sale and after-sale service?

A:In terms of pre-sales service, we have a professional sales team and technical team, who are willing to answer your questions within 24 hours.For after-sales service, we can instruct how to install, use and replace damaged modules.


lcd panel display screen

brandRisingStar DisplayModel nameLD860DBN-UJA2
size86 inchScreen typea-Si TFT-LCD,Lcd Module
resolution ratio3840(RGB)×600  45PPIPixel configurationRGB vertical bar
Display Area2148.48×335.7 mm (H×V)Surface treatmentFog surface(Haze 28%),Hard coating (3H)
Visual size2149.5×336.7 mm (H×V)Contrast Ratio1100:1 (Typ.) (TM)
Brightness(cd/m²)700cd/m²(Typ.)or customizedOutline dimension2158.3×348.5×82.2mm(H×V×D)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Backlight typeWLED, 50K hours, including LED driver
Signal interfaceV-by-One 8 lane ,erminal,51 pins

work environmentStorage temperature: -20 to 60 °C  Operation Temperature: 0to 50 °C
