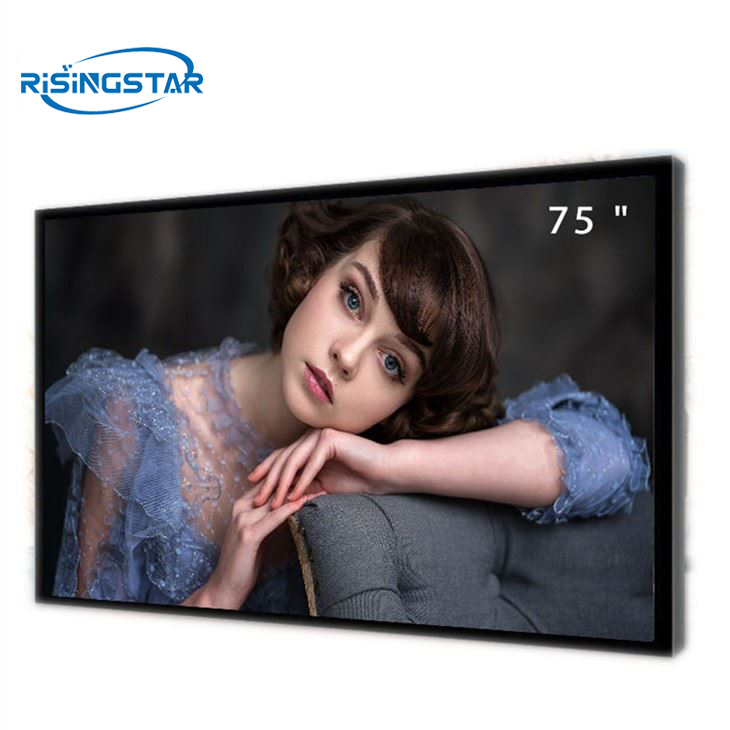

Innolux S750DJ3-D02 Rev.B3 LCD Module
Innolux S750DJ3-D02 Rev.B3 LCD Module
Innolux S750DJ3-D02 Rev.B3 LCD Module

Innolux S750DJ3-D02 Rev.B3 LCD Module

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Air,Land,Express

Product Description
Product Attributes

Model No.S750DJ3-D02

BrandRisingSTAR

Size75-inches

Brightness700-nits

BrandInnolux

Supply Ability & Additional Information

Productivity220k

TransportationOcean,Air,Land,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

[Eye-catching UHD 4K ultra-high quality]

UHD 4K ultra-high resolution makes text and image details clearer.

The brightness design above 700 nits is suitable for various indoor lighting environments, which is bright enough but harmless to the eyes.

5000:1 ultra-high contrast ratio makes the picture quality richer and brighter, the layers more vivid, and the image more attractive.


[Support landscape and vertical display]

Unlike normal TV application panels, images can be perfectly rendered in landscape or vertical display mode.

It can operate stably in various places such as retail shop, mass transportation, metro station, bus shelter and so on.

FHDUHD-feature

Q:what can I buy from you?

A:semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight  LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end LCD Panel.

Q:Is there any other size or specification can be choose?

A:If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.

high brightness LCD

brand Innolux Model name S750DJ3-D02 Rev.B3
size 75 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 3840(RGB)×2160 [UHD] 59PPI Pixel configuration RGB vertical bar
Display Area 1650.24 × 928.26 mm (H×V) Surface treatment Fog surface(Haze 1%),Hard coating (3H)
Viewing area 1654 × 932 mm (H×V) Contrast Ratio 5000:1 (Typ.) (TM)
Brightness(cd/m²) 700 cd/m²(Typ.)or customized Outline dimension 1675.8×953.8×61.4mm(H×V×D)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)

Signal interface V-by-One 8 lane ,terminal, 51 pins

work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
