Model No.: DV750QUM-N00
Size: 75-inches
Brand: BOE
Brightness: 500-nits
Transportation: Ocean,Land,Air,Express
Payment Type: T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF,EXW

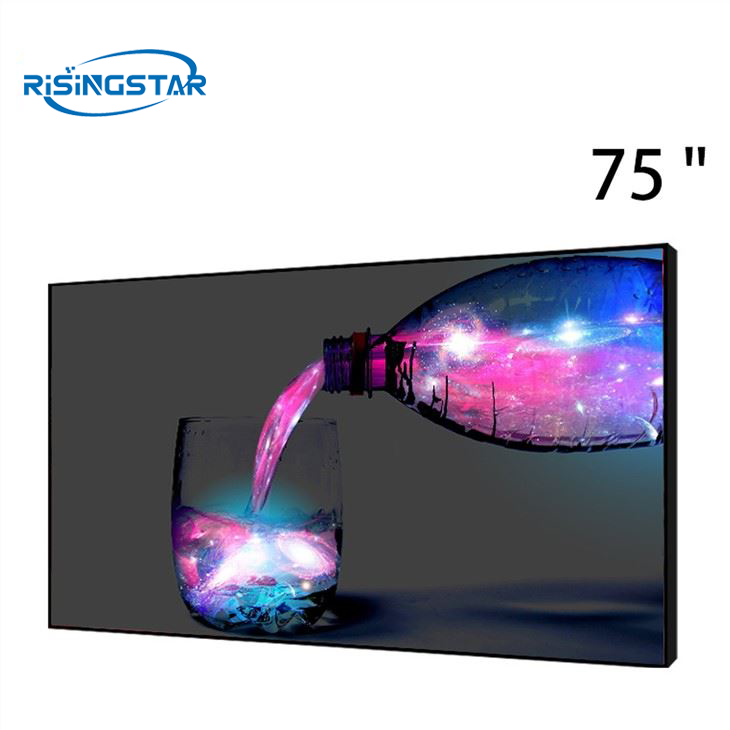

DV750QUM-N00, a 75-inch a-Si TFT-LCD liquid crystal module product. The operating temperature of the module is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C.
The display resolution of DV750QUM-N00 is 3840(RGB)×2160 (UHD), the aspect ratio is 16:9 (W:H), the display area size of the module is 1649.66(W)×927.936(H) mm, and the appearance size It is 1683.46(W)×961.74(H) mm, the surface treatment is matte (Haze 1%), Hard coating (2H), and the net weight of the product is 27.0Kgs. In terms of backlight, this product uses a direct-type light source with WLED light.
[Support landscape and vertical display]
Unlike normal TV application panels, images can be perfectly rendered in landscape or vertical display mode.

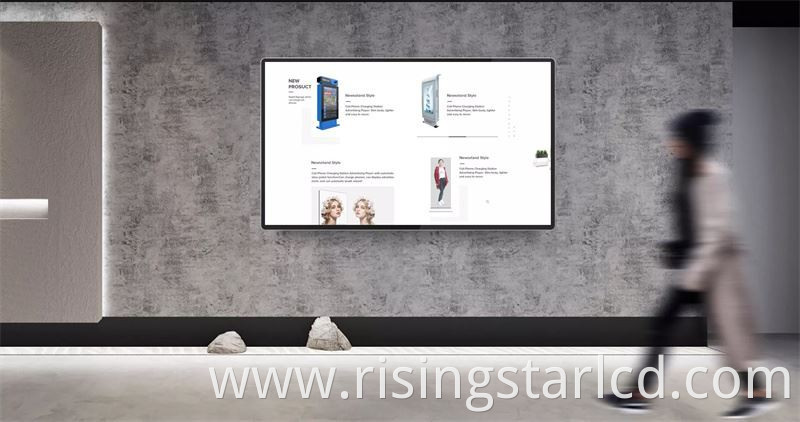

It can operate stably in various industrial and commercial environments such as retail, mass transportation, security monitoring, and audio-visual control centers to meet the diverse needs of customers.
[Eye-catching UHD 4K ultra-high quality]
UHD 4K ultra-high resolution allowed the customers get more details from the display
The high-brightness design above 500 nits is suitable for various indoor lighting environments, bright enough but harmless to human eyes.
1200:1 ultra-high contrast ratio makes the picture quality richer and brighter, the layers more vivid, and the image more attractive.
[The industry's most complete lineup of industrial-grade panel products]
Rising-star provides a complete product line from 10.1 inches to 100 inches for various applications, high quality, high reliability, strong durability, high environment effects resistance, long-term operation and long life cycle of industrial grade display panels, suitable for a variety of strict harsh environment requirements.
| brand | BOE | Model name | DV750QUM-N00 |
| size | 75 inch | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution ratio | 3840(RGB)×2160, UHD, 59PPI | Pixel configuration | RGB vertical bar |
| Display Area | 1649.66×927.936(H×V)mm | Surface treatment | Fog surface(Haze 1%)，Hard coating (2H) |
| Visual size | / | Contrast Ratio | 1200:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 1683.46×961.74mm(H×V×D) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Backlight type | WLED, 30K hours,Including LED driver |
| Signal interface | V-by-One 8 lane , 51 pins ,erminal | weight | 27.0Kg |
| supply voltage | 12.0V (Typ.) | work environment | Storage temperature: -20 to 60 °C Operation Temperature: 0 to 50 °C |
