CSOT MG5461B01-1 55
CSOT MG5461B01-1 55
CSOT MG5461B01-1 55

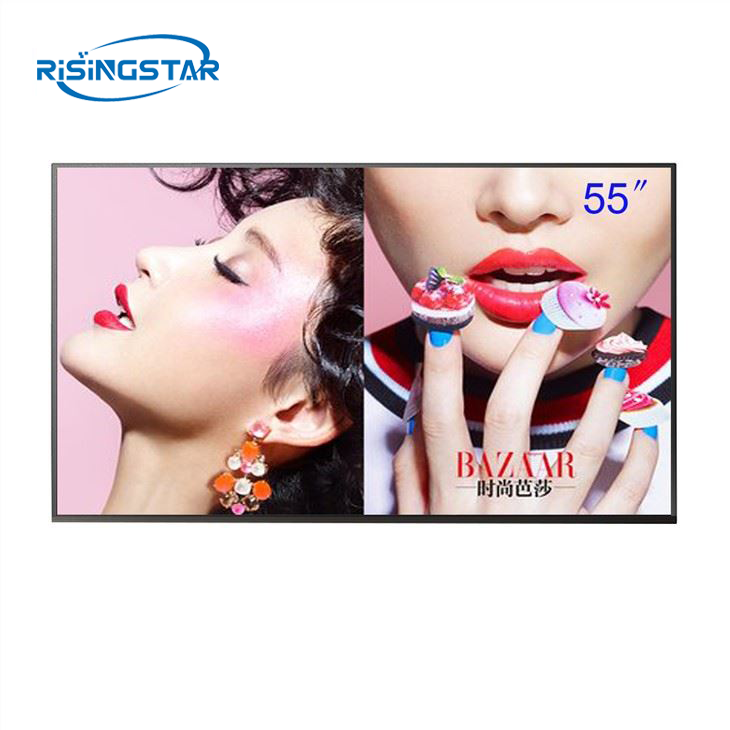

CSOT MG5461B01-1 55"LCD Panel

Payment Type:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.MG5461B01-1

BrandCSOT

Size55-inches

Brightness500-nits

BrandCSOT

Supply Ability & Additional Information

Productivity220K

TransportationOcean,Land,Air,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

Payment TypeL/C,T/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The operating temperature of MG5461B01-1 is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. The MG5461B01-1 has a display resolution of 1920 (RGB) × 1080 (FHD) and an aspect ratio of 16:9 (width:height).

The display area size of MG5461B01-1 is 1209.6(W)×680.4(H) mm, the appearance size is 1213.5(W)×684.3(H) mm, and the surface treatment is matte (Haze 25%).

high brightness LCD

brand CSOT Model name MG5461B01-1
size 55 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×1080 (FHD) Pixel configuration RGB vertical bar
Display Area 1209.6×680.4(H×V)mm Surface treatment Fog surface(Haze 25%)
Visual size / Contrast Ratio 4000:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 1213.5×684.3(H×V×D)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Backlight type WLED,Including LED driver
Signal interface LVDS (2 ch, 8-bit) ,erminal, 51 pins work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
supply voltage 12.0V (Typ.)
