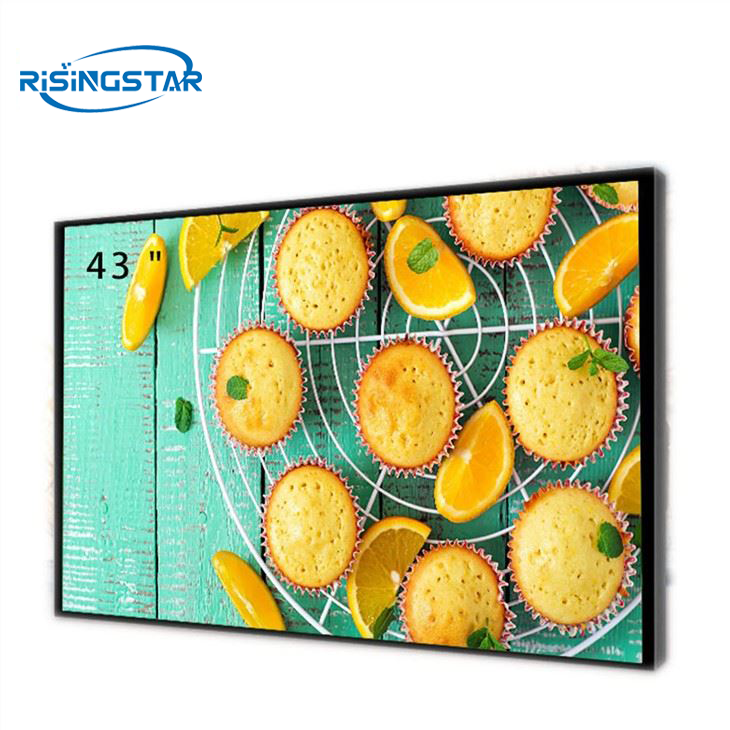

43 Inch MG4251B03-1 LCD Dispiay Module
43 Inch MG4251B03-1 LCD Dispiay Module
43 Inch MG4251B03-1 LCD Dispiay Module

43 Inch MG4251B03-1 LCD Dispiay Module

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.MG4251B03-1

Size43-inches

Brightness500-nits

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The MG4251B03-1 display resolution is 1920 (RGB) × 1080 (FHD), the aspect ratio is 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. The size of the display area of MG4251B03-1 is 940.896×529.254 (W×H) mm, the appearance size is 961.8×551.25 (W×H)×12.3 (D) mm, the surface treatment is matte (Haze 2%), Hard coating ( 3H).

The operating temperature of MG4251B03-1 is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C.

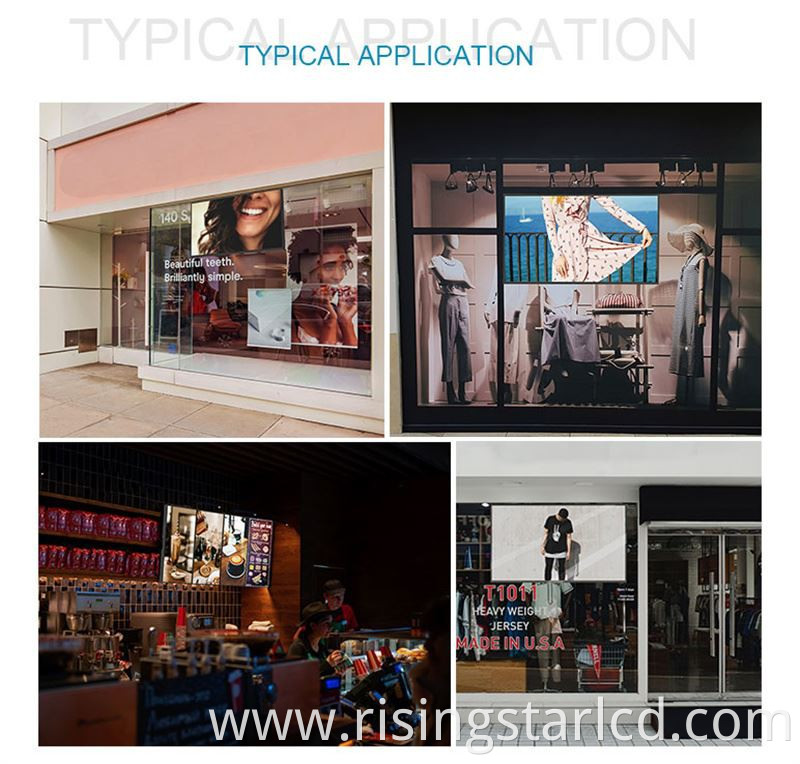

facing windows display

Q:Are you manufacturer(factory)?

A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


Q:what can you buy from us?

A:semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight  LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end LCD Panel.


Q:Is there any other size or specification can be choose?

A:If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.

high brightness LCD

brand CSOT Model name MG4251B03-1
size 43inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×1080[FHD] Pixel configuration RGB vertical bar
Display Area 940.896×529.254mm(H×V) Surface treatment Fog surface(Haze 2%),Hard coating (3H)
Visual size / Contrast Ratio 4000:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 961.8×551.25×12.3mm(H×V×D)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Backlight type WLED,30K hours,Including LED driver
Signal interface LVDS (2 ch, 8-bit),erminal, 51 pins work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C


Hot Tags: 43 inch mg4251b03-1 lcd dispiay moudle, China, factory, cheap, price, customized, quotation, window facing LCD, 2000 nits outdoor displays, digital display screens, Sunlight Readable Lcd Display, 2000nits screen, signage lcd display, Brightness LCD PanelLCD panel, LCD module, High Brightness Display.
