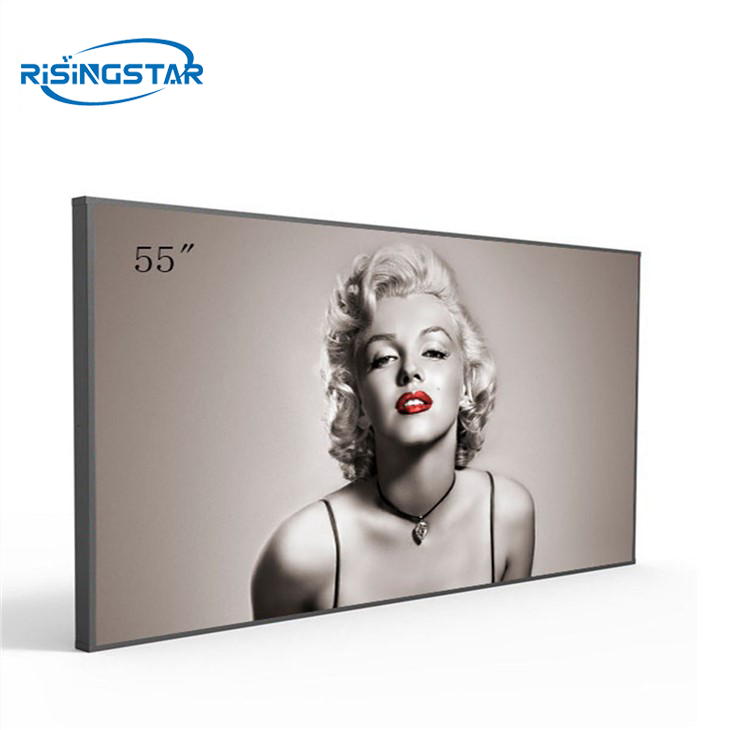

55Inch MG5461D08-1 LCD Panel Screen Module
55Inch MG5461D08-1 LCD Panel Screen Module
55Inch MG5461D08-1 LCD Panel Screen Module

55Inch MG5461D08-1 LCD Panel Screen Module

Payment Type:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.MG5461D08-1

BrandCSOT

Size55-inches

Brightness500-nits

BrandCSOT

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of Originshenzhen

Payment TypeL/C,T/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The operating temperature of MG5461D08-1 is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. The display resolution of MG5461D08-1 is 3840(RGB)×2160(UHD), and the aspect ratio is 16:9 (W: High), the pixels are arranged in RGB vertical stripes.


The display area size of MG5461D08-1 is 1209.6×680.4 (W×H) mm, the visible size is 1211.6×682.4 (W×H) mm, and the appearance size is 1225.4 (W)×696.2(H)×70.25(D) mm .


[FHD / UHD display, high-quality image, perfect presentation of product information]

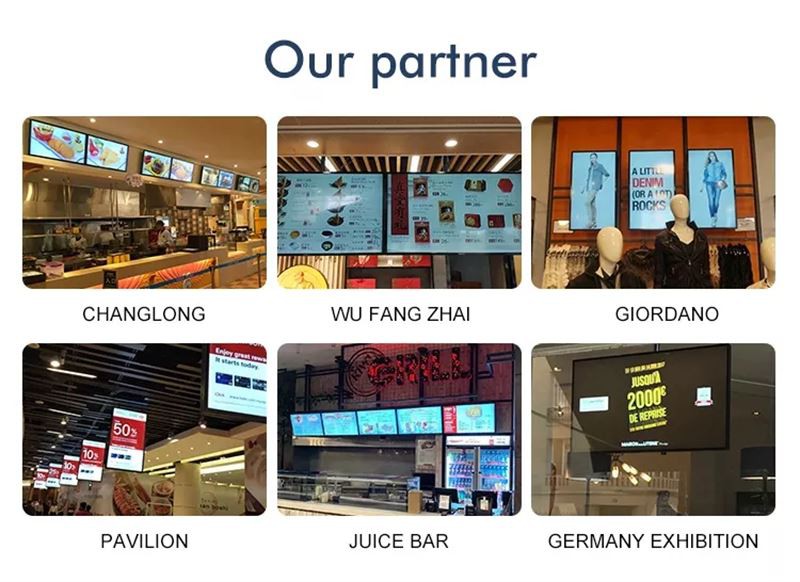

The entire FHD / UHD series of display panels are designed with a low-reflection surface to reduce the impact of ambient light sources, providing clearer images and a more comfortable viewing experience. UHD 4K ultra-high resolution can clearly display product information, and the bright and clear display effect can attract consumers' attention. It is suitable for advertising and message transmission in retail channels, department stores, banks and public transportation facilities.

Optional size: 10.1-100 inch

hight brightness lcd panel

brand CSOT Model name MG5461D08-1
size 55inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 3840(RGB)×2160,UHD Pixel configuration RGB vertical bar
Display Area 1209.6×680.4(H*V)mm Surface treatment Fog surface(Haze 2%),Hard coating (3H)
Visual size 1211.6×682.4(H*V)mm Contrast Ratio 5000:1 (Typ.) (TM)
Brightness(cd/m²) 500cd/m²(Typ.)or customized Outline dimension 1225.4×696.2×70.25mm(H×V×D)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
Signal interface V-by-One 8 lane,51 pins,erminal

supply voltage 12.0V (Typ.)
