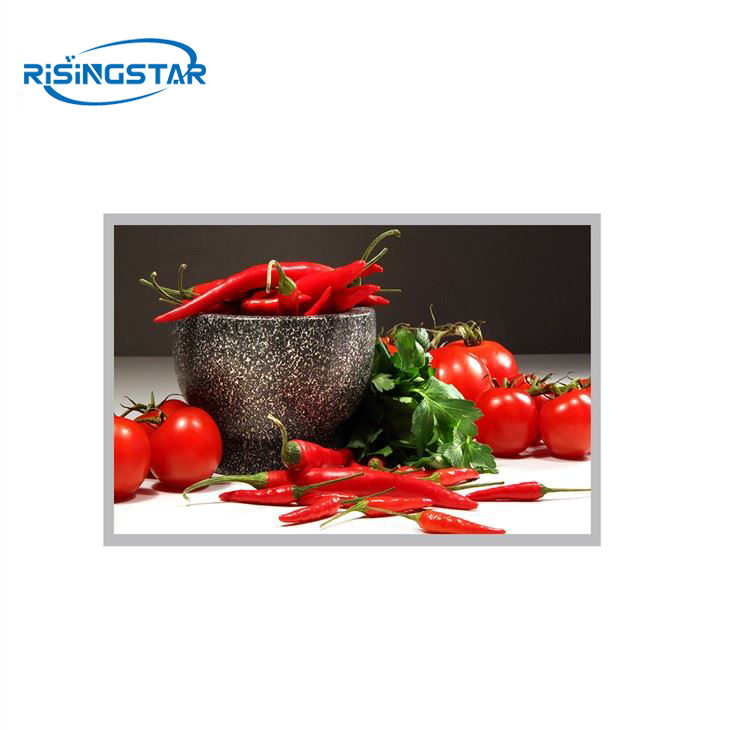

MNF601EA1-1 LCD Screen Module
MNF601EA1-1 LCD Screen Module
MNF601EA1-1 LCD Screen Module

MNF601EA1-1 LCD Screen Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.MNF601EA1-1

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The operating temperature of the MNF601EA1-1 is 0 ~ 50°C, and the storage temperature is -20 ~ 60°C. The display resolution of MNF601EA1-1 is 3840(RGB)×2160 (UHD), the aspect ratio is 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of MNF601EA1-1 is 345.6×194.4 ( Width × Height) mm, appearance size 350.72 (width) × 216.07 (height) × 2.6 (thickness) mm.

lcd display


Standardization and customization to meet various environmental needs.

Rising-star general-purpose display panels feature ultra-high resolution, outdoor visibility, and long product life. Product applications cover automatic teller machines (ATM), terminal point of sale machines (POS), interactive information kiosks (KIOSK), industrial computers (IPC), security monitoring, commercial entertainment machines, medical equipment, factory automation, in-flight entertainment and marine displays Wait. high brightness LCD

brand CSOT Model name MNF601EA1-1(CSO1500)
size 15.6inch Screen type LTPS TFT-LCD,Lcd Module
resolution ratio 3840(RGB)×2160, UHD Pixel configuration RGB vertical bar
Display Area 345.6×194.4(H×V)mm Surface treatment mirror(Haze 0%),Hard coating (3H)
Visual size / Contrast Ratio 1500:1 (Typ.) (TM)
Brightness(cd/m²) 600cd/m²(Typ.)or customized Outline dimension 350.72×216.07×2.6(H*V*D)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) work environment Storage temperature: -20 to 60 °C  Operation Temperature: 0 to 50 °C
Signal interface eDP (4 Lanes),eDP1.4,HBR2 (5.4G/lane),40 pins,erminal

supply voltage 3.3V (Typ.)
