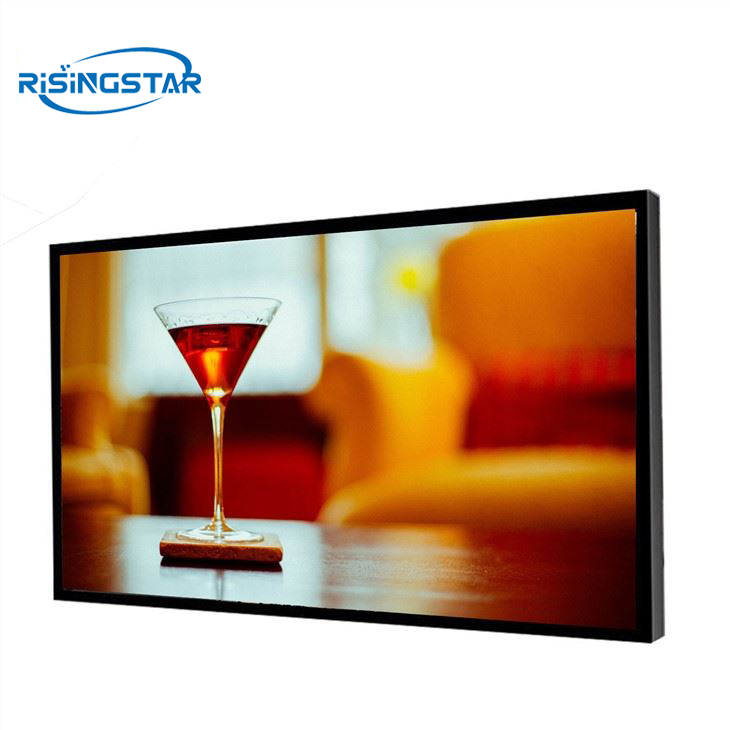

40 Inch LTI400HN01 Sunlight Readable LCD Panel
40 Inch LTI400HN01 Sunlight Readable LCD Panel
40 Inch LTI400HN01 Sunlight Readable LCD Panel

40 Inch LTI400HN01 Sunlight Readable LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisinglcd

Supply Ability & Additional Information

Productivity165k

Place of OriginChina

CertificateCE/ROSH/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The LTI400HN01 display resolution is 1920 (RGB) × 1080 (FHD), the aspect ratio is 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. Its operating temperature is 0 ~ 50°C, and its storage temperature is -20 ~ 65°C. Recommended for Digital Signage.


The display area size of LTI400HN01 is 885.6×498.15 (W×H) mm, the visible size is 891.6×504.15 (W×H) mm, the appearance size is 911.4×523.95 (W×H)×22.4 (D) mm, surface treatment For the matte surface (Haze 25%), Hard coating (2H).

facing windows display screen

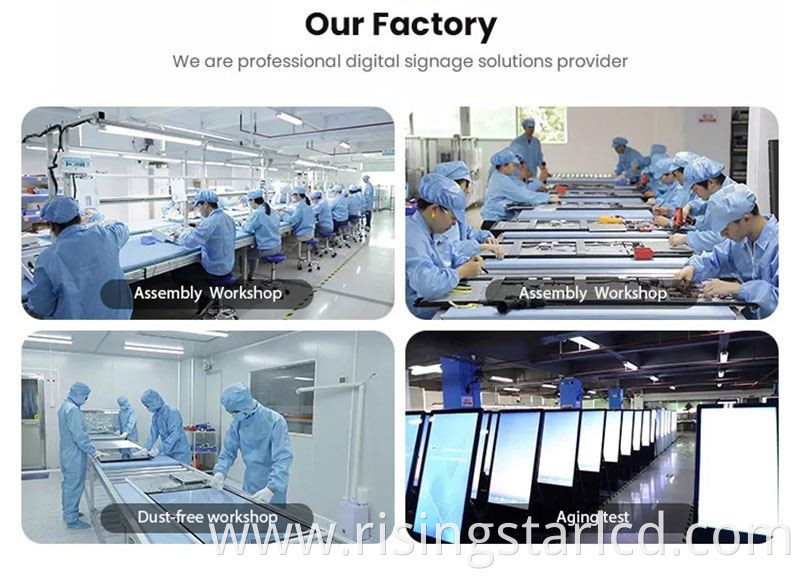

R-star originated from Shenzhen, China,  We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, There are more than 100 employees, including 20 experienced engineers. The company has passed ISO9001/ISO14001/CCC/CE/FCC/ROHS/UL and other certifications, has a high-level R&D platform, and has become an ODM/OEM partner of many world-class companies.Our markets cover Asia, North America, Africa, Middle East, Europe, Central and South America and Oceania.We believe that if you give us a chance to serve, we will be your trusted supplier in China.

high brightness LCD

brand RisingStar Model name LTI480HN01
size 46 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×1080 Pixel configuration RGB vertical bar
Display Area 1054.08×592.92(H×V)mm Surface treatment Fog surface(Haze 25%),Hard coating (2H)
Visual size 1060.08×598.92(H×V)mm Contrast Ratio 4000:1 (Typ.) (TM)
Brightness(cd/m²) 700cd/m²(Typ.)or customized Outline dimension 1079.88×618.72×22.4(H×V×D)mm
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) work environment Storage temperature: -20 to 65 °C  Operation Temperature: 0 to 50 °C
Signal interface LVDS (2 ch, 8-bit) ,erminal,51pins

supply voltage 12.0V (Typ.)
