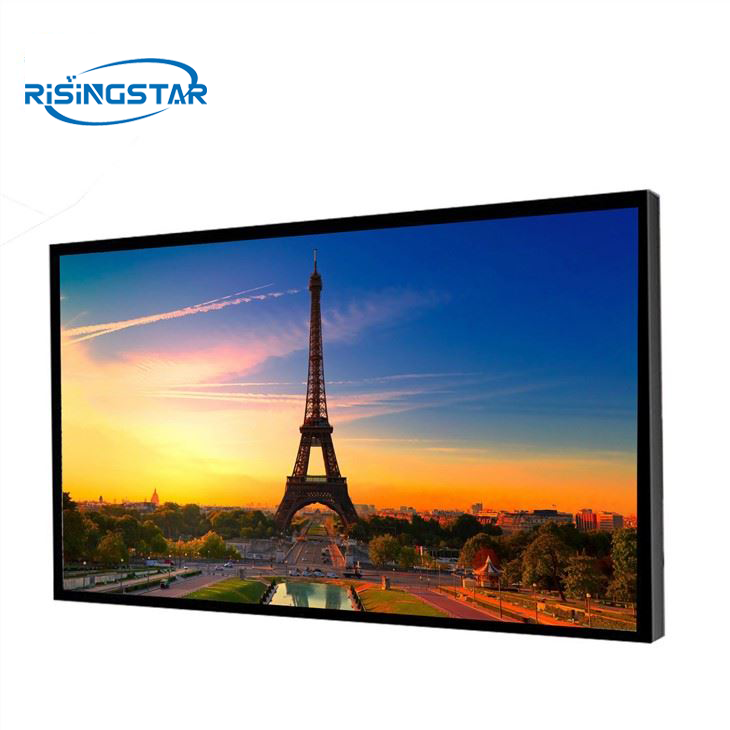

LTI550HF04 High Brightness Lcd Module Display
LTI550HF04 High Brightness Lcd Module Display
LTI550HF04 High Brightness Lcd Module Display

LTI550HF04 High Brightness Lcd Module Display

Payment Type:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:shenzhen

Product Description
Product Attributes

Model No.LTI550HF04

BrandRisingStar

Size55-inches

Brightness2500-nits

BrandRisingStar

Supply Ability & Additional Information

Productivity230K

TransportationOcean,Land,Air,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

Portshenzhen

Payment TypeL/C,T/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The TI550HF04 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of this display is 1209.6(W)×680.4(H) mm, the appearance size is 1227.4(W)×698.2(H)×77.9(D) mm, and the visible size is 1211.6(W)×682.4(H) ) mm with a mirror finish (Haze 0%)


The operating temperature of this module is 0 ~ 50°C, and the storage temperature is -20 ~ 65°C. Used in Digital Signage, outdoor highlights and other products.


Q:Are you manufacturer(factory)?

A:Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.


Q:how can we guarantee quality?

A:Always final Inspection before shipment;


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.

high brightness LCD

brand RisingStar Model name LTI550HF04
size 55 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×1080 Pixel configuration RGB vertical bar
Display Area 1209.6×680.4(H×V) mm Surface treatment mirror surface(Haze 0%)
Visual size 1211.6 × 682.4(H×V)mm Contrast Ratio 5000:1 (Typ.) (TM)
Brightness(cd/m²) 2500cd/m²(Typ.)or customized Outline dimension 1227.4×698.2×77.9mm(H×V×D)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) work environment Storage temperature: -20 to 65 °C  Operation Temperature: 0 to 50 °C
Signal interface LVDS (4 ch, 10-bit) ,erminal,92pins

supply voltage 12.0V (Typ.)
