Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Brand: Risinglcd
Productivity: 210k
Place of Origin: China
Certificate: CE/ROSH/ISO9001

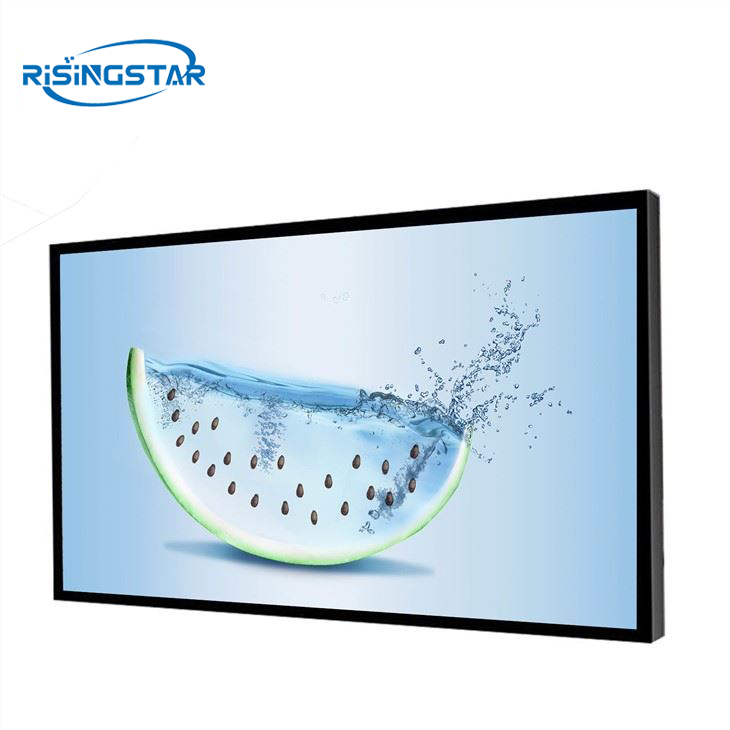

LTI480HN02 module screen, it is equipped with WLED backlight, including LED driver backlight drive, no touch. The operating temperature of this display is 0 ~ 50°C, and the storage temperature is -20 ~ 65°C. Suitable for products such as Digital Signage.
The LTI480HN02 display resolution is 1920 (RGB) × 1080 (FHD), the aspect ratio is 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of the display screen is 1054.08(W)×592.92(H) mm, the appearance size is 1079.88(W)×618.72(H)×22.9(D) mm, and the visible size is 1060.08(W)×598.92(H) mm , The surface treatment is matte (Haze 25%), Hard coating (2H), and a WLED light-emitting edge light source (bottom) is used.
Q：Are you manufacturer(factory)?
A：Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.
Q：how can we guarantee quality?
A：Always final Inspection before shipment;
| brand | RisingStar | Model name | LTI480HN02 |
| size | 48 inch | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution ratio | 1920(RGB)×1080 | Pixel configuration | RGB vertical bar |
| Display Area | 1054.08×592.92(H×V)mm | Surface treatment | Fog surface(Haze 25%)，Hard coating (2H) |
| Visual size | 1060.08×598.92(H×V)mm | Contrast Ratio | 4000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 500cd/m²(Typ.)or customized | Outline dimension | 1079.88×618.72×22.9(H×V×D)mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | work environment | Storage temperature: -20 to 65 °C Operation Temperature: 0 to 50 °C |
| Signal interface | LVDS (2 ch, 8-bit) ,erminal,51pins | | |
| supply voltage | 12.0V (Typ.) | | |
