Model No.: RS320HVN-N15
Brand: Risingstar
Size: 32-inch
Brightness: 1500-nits
Productivity: 350K
Transportation: Ocean,Land,Air,Express
Place of Origin: China
Certificate: CE/ROSH/ISO9001
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CIF,EXW,Express Delivery
| size | 32.0" | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution | 1920(RGB)×1080 FHD 69PPI | Pixel configuration | RGB inclined bar |
| Display size | 698.4(H)×392.85(V) mm | Appearance of size | 721.2(H)×415.65(V) ×58.5(D) mm |
| Visual size | 701.4(H)×395.85(V) mm | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 2500 cd/m² (Typ.) | contrast | 4000 : 1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Apply to | Digital Signage and outdoor highlighting |
| Signal system | 51 pins LVDS (2 ch, 8-bit) , terminal | | |
| Maximum rated | Storage temperature: -30 ~ 70°C Working temperature: -20 ~ 60°C | | |

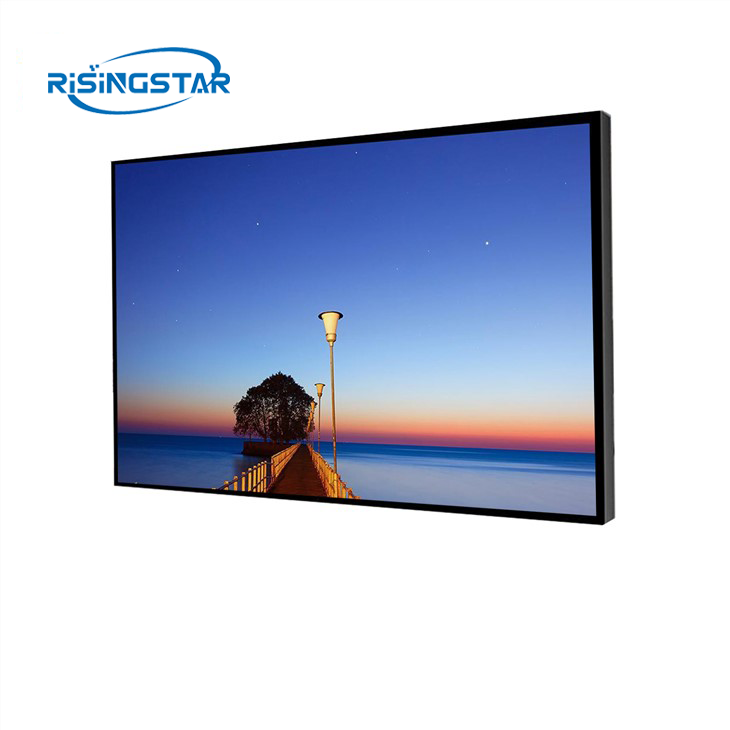

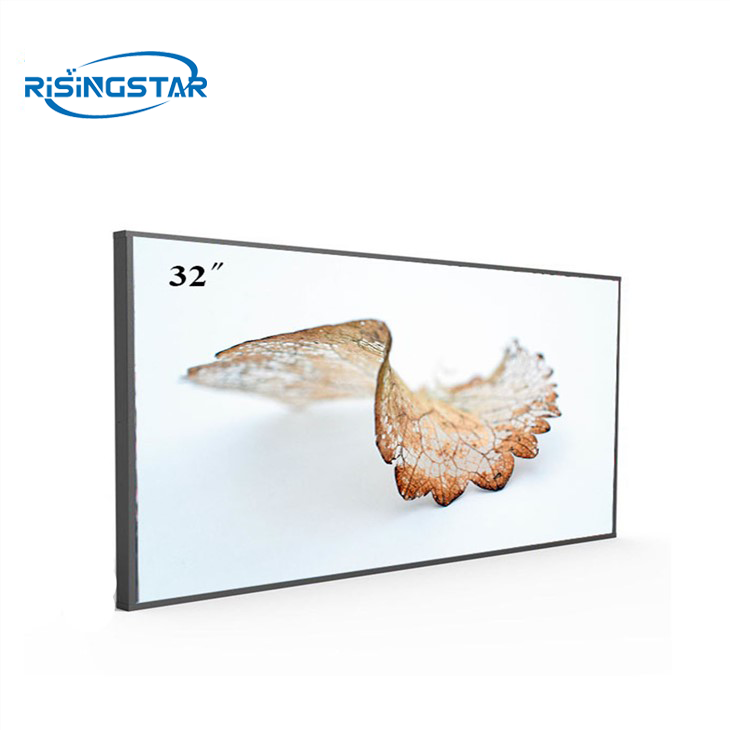

The 32 inch 1500 nit Lcd Display panel adopts a straight down/side in LED backlight, with a brightness of 500-5000 nits. Equipped with an automatic/PWM/DC/RS232 dimming system, the screen brightness can be automatically adjusted according to the outdoor ambient light intensity, which is environmentally friendly and energy-saving. Ultra thin design, delicate image quality, and even color distribution.
32 inch 1500 nit TFT LCD Panel features:
1. Intelligent environment photosensitive function: Automatically adjust according to the degree of the environment, and display the optimal state of the screen;
2. High and low temperature protection function: Automatically adjust the temperature during low temperature to avoid frostbite in standby mode. When the temperature exceeds the normal working range, the backlight will automatically turn off, and when the temperature returns to normal, it will automatically turn on again to achieve protection;
3. Preheating function: can work normally at low temperatures;
4. Low voltage constant current drive system: Low voltage drive circuit design ensures excellent safety performance of equipment.
The 32 inch 1500 nit TFT LCD panel underwent a 72 hour high temperature test at 70 ℃ and a 72 hour test at -30 ℃. After disassembling the LCD display module, the TFT panel showed no abnormalities, and the polarizer showed no cracks or bubbles; The optical film material shows no water stains and shows no visible changes; The LED backlight has no abnormalities, cracks, or dead lights; The silicone pad is normal, and the electronic components of the backlight driver board are intact.
RS320HVN-N15 is suitable for outdoor sunny and readable scenarios, such as train passenger information display, bus passenger information display, airport passenger information display, vending machine digital display, gas station interactive display, and Outdoor Digital Signage.
