75"3000nit Digital Signage Outdoor Screens

Payment Type:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Express,Air

Product Description
Product Attributes

BrandRisingstar

Size75-inches

Brightness3000-nits

BrandRisingLCD

Supply Ability & Additional Information

TransportationOcean,Land,Express,Air

Place of OriginShenzhen

Payment TypeL/C,T/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

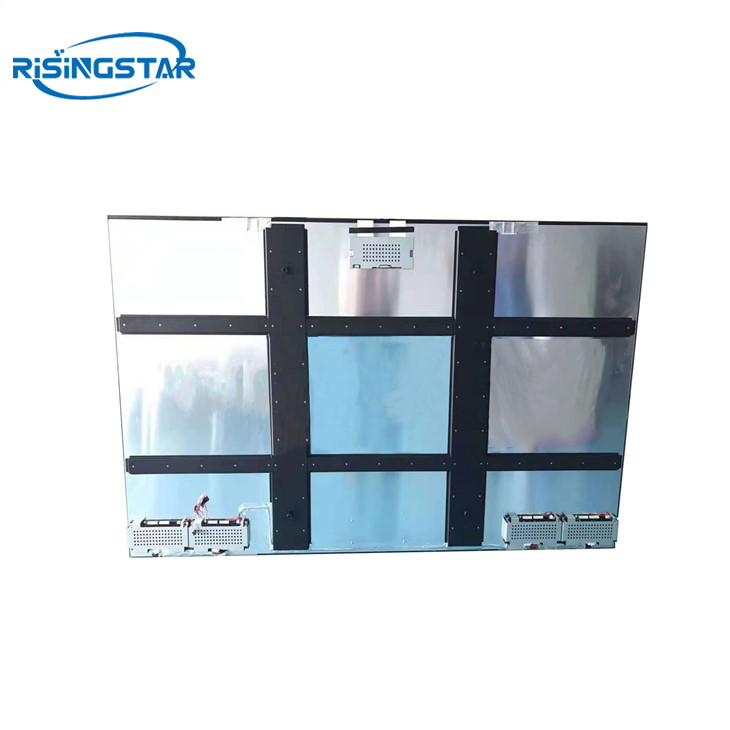

RS750EGY-ND30 is one of the Risingstar 75-inch series large size LCD Panel, all the open-cell used by panel were purchased from RisingStar directly, with Risingstar design their maximum brightness could reach 4000-nits, this one here is 3000-nits.


75-inch is a very popular size for manufacturers in Digital Signage area, also the charging pile maker will use it to make advanced charging piles.


Panel Brand RISINGSTAR Panel Model RS750EGY-ND30
Panel Size 75.0" Panel Type a-Si TFT-LCD , LCM
Resolution 3840*2160 Pixel Format RGB Vertical Stripe
Display Area 1652.7(W)×930.9(H)mm Bezel Opening /

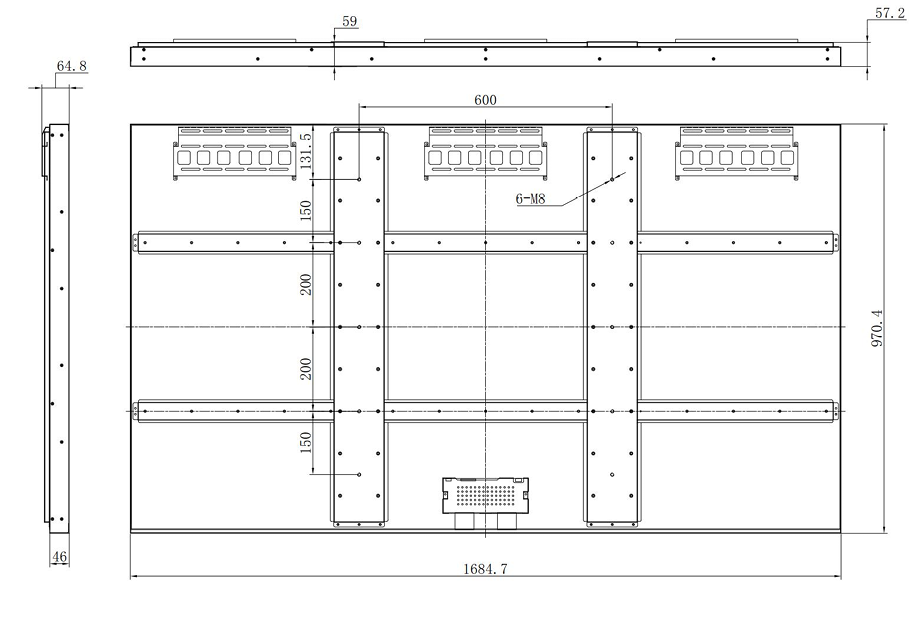

Outline Size 1684.7(H)×970.4(V)×66.3(D)mm(Typ.) Surface Antiglare (Haze 3%), Hard coating (2H)
Brightness 3000 cd/m²or customized Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode Transmissive mode, Normally black
Display Colors 16.7M   Response Time 6/9 (Typ.)(G to G) ms
Frequency 60Hz Input Voltage 12.0V (Typ.)
Weight 29.7kg(Typ.) 30kg(Max) Signal Interface LVDS (2 ch, 8-bit) , 51 pins Connector
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
